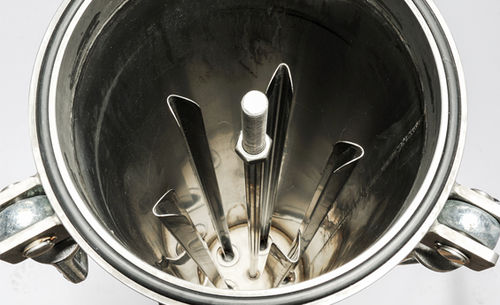

Multi-cartridge filter housing CH, CHD

for liquidsstainless steel

Multi round stainless steel cartridge housings are available with a choice of two lid designs: Bolted lid (CH series). Standard range contains from 3 to 34 cartridges and suits industry standard 10”, 20”, 30” and 40” nominal length filter cartridges. Larger vessels are available on request. Dome lid with V band clamp closure (CHD series). Standard range contains from 3 to 7 cartridges and suits industry standard 10”, 20”, 30” and 40” nominal length filter cartridges. Multi round cartridge vessels feature a universal bottom cup to suit double open ended, code 8 (222 o rings/fin) or code 3 (222 o rings / flat) cartridges. Our vessel design therefore provides versatility – by simply exchanging the cartridge top sealing components, the vessel can be converted to suit either double open ended cartridges or to suit code 3 and 8 cartridges. For use with double open ended cartridges, vessels are provided with a cup and spring component which achieves both top sealing and cartridge core location, and a compression plate. To use with code 3 or 8 cartridges, vessels are provided with a compression plate with cartridge end cap locating holes. Multi round cartridge housings are constructed from either stainless steel 304 or 316L. As standard, the external finish is bead blasted. Other surface finishes such as internal and external electropolishing are available on request. The standard connection types are BSP screwed, DN Flanged or ANSI flanged with connection size according to model.
