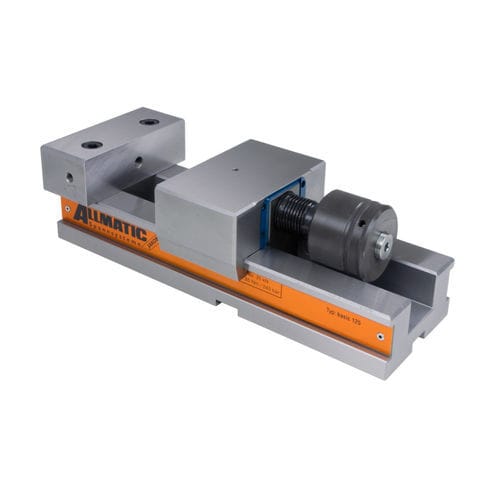

Machine tool vise basic 160

hydraulic

Area of application: - Conventional and CNC-controlled milling machines – for efficient precision machining - Horizontal installation – great variability and flexibility Product features : - Excellent ease of operation guarantees optimal handling in every situation - Fast adjustment for clamping range preselection - The clamping force is generated and preset via the hydraulic pressure of a hydraulic unit - Integrated scrapers ensure functional reliability and minimise cleaning - Fixing on the machine table by means of mounting holes in the vice base. Additional holes can be made in the soft middle section of the vice base - Optional centre jaw allows two or more workpieces to be clamped - Coarse adjustment is performed by turning the spindle. The residual stroke of up to 4.5 mm is performed via a hydraulic unit with spring reset by means of a single-acting cylinder
