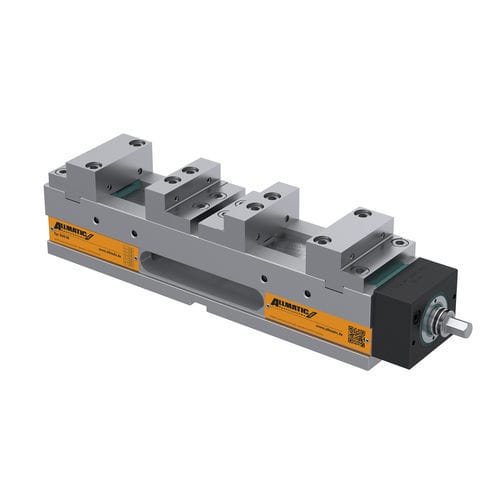

Machine tool vise Duo 90

horizontal

Area of application: - Horizontal installation – suitable for vertical CNC-controlled milling machines - Lateral installation is also possible Product features: - Extreme accuracy for your machining - Clamping force can be preset in 6 increments. At most, 1 rotation is required to reach the max. clamping force - For clamping two identical parts (dimensional differences of up to ± 3 mm are compensated for) - Preselectable and reproducible clamping forces enable the workpiece position to be repeated within a tolerance of less than 0.01 mm - Standard with locating holes Ø 25H6 M10 for zero-point clamping systems; Inside micrometre 200mm ± 0.01mm - Possible zero point clamping bolts Important: Workpieces must be placed in both stations before clamping begins. Type 90: drive head with finer clamping force presetting for delicate workpieces (6 increments)
