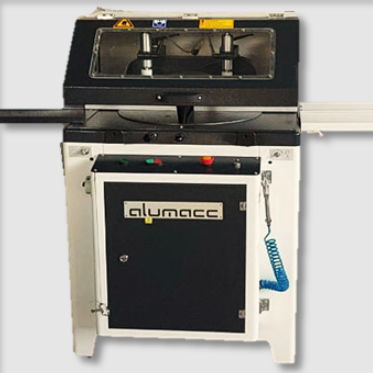

Knife cutting machine ET 0220for aluminumfor aluminum profilessingle-head
Add to favorites
Compare this product
Characteristics
- Technology
- knife
- Material
- for aluminum
- Product handled
- for aluminum profiles
- Configuration
- single-head
- Other characteristics
- with water cooling, linear, vertical, 45°, 90°, fixed
- Operating pressure
Max.: 8 bar
(116.03 psi)Min.: 6 bar
(87.02 psi)- Overall length
1,100 mm
(43 in)- Minimum width
Max.: 3,000 mm
(118 in)Min.: 1,000 mm
(39 in)- Height
1,300 mm
(51 in)- Weight
390 kg
(859.8 lb)
Description
GENERAL FEATURES
CHARACTERISTICS / TECHNICAL SPECIFICATIONS
- Operates with a vertical bed bottom-ejection system.
- Performs precise cuts on aluminum profiles from 21° to 159°.
- Integrated coolant system ensures consistent cutting and surface quality.
- Linear guide system provides cutting accuracy.
- Cutting surface made of stainless material resistant to wear, impact and corrosion.
- Fixed stop system with preset 21°, 45° and 90° positions for easy setup.
CHARACTERISTICS / TECHNICAL SPECIFICATIONS
- Brand: ALUMACC MAKİNA
- Model: ET 0220
- Operating principle: vertical bed with bottom-ejection system
- Cutting angle range: 21°–159°
- Cooling: integrated coolant system
- Guides: linear guide system
- Cutting surface material: stainless material (wear, impact and corrosion resistant)
- Preset angles: fixed stop system at 21°, 45°, 90°
