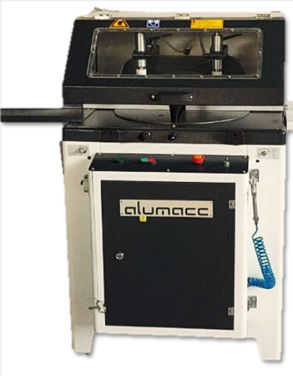

Aluminum cutting machine ET 0230for aluminum profilessingle-headautomatic
Add to favorites
Compare this product
Characteristics
- Material
- for aluminum
- Product handled
- for aluminum profiles
- Configuration
- single-head
- Other characteristics
- automatic, high-precision, with water cooling
- Operating pressure
Min.: 6 bar
(87.02 psi)Max.: 8 bar
(116.03 psi)- Overall length
1,100 mm
(43 in)- Minimum width
Min.: 1,000 mm
(39 in)Max.: 3,000 mm
(118 in)- Height
1,300 mm
(51 in)- Weight
490 kg
(1,080.27 lb)
Description
GENERAL FEATURES
TECHNICAL SPECIFICATIONS
- Optional digital measuring system enabling automatic positioning to the required dimension.
- Operates with vertical bed and bottom-exit cutting system.
- Performs precise cuts on aluminum profiles between 21° and 159°; fixed stops at 21°, 45° and 90° for common positions.
- Equipped with a cooling system for tool and workpiece protection.
- Linear bearing guidance ensures high cutting accuracy.
- Cutting-contact surfaces made of stainless material resistant to wear, impact and corrosion.
TECHNICAL SPECIFICATIONS
- Digital measuring system: optional; automatic travel to selected dimension.
- Operating mode: vertical bed with bottom-exit cutting system.
- Angles: cutting range 21°–159°; fixed stops at 21°, 45°, 90°.
- Guidance: linear bearing system for precision cutting.
- Cooling: integrated cooling system.
- Material resistance: stainless cutting surfaces resistant to wear, impact and corrosion.
