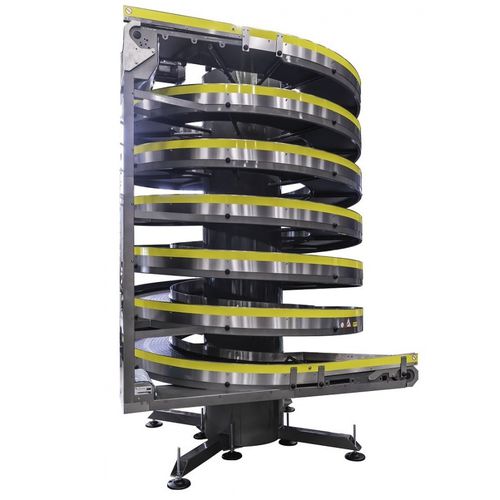

Spiral conveyor SpiralVeyor SVm-series
beltrollerchain

spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
spiral conveyor
Add to favorites
Compare this product

Characteristics

Technology
belt, roller, chain
Product transported
for bottles, for containers, for cans, for elevators
Other characteristics
inclined, compact, spiral, stainless steel, straight
Maximum load

100 kg (220.462 lb)

Speed

60,000 mm/min (39.37 in/s)

Description

The SpiralVeyor SVm is designed to convey a mass flow of individual bottles and cans. Its compact, robust and simple design makes it a revolutionary solution. The AmbaFlex patented belt with lateral roller guides permits multiple windings. This innovative solution allows a much more effective layout for filling lines. The SpiralVeyor SVm saves valuable floor space compared to traditional straight inclined chain conveyors. It also compares very favorably to side grip elevators. It eliminates the need to combine lines, enabling a compact line design. Thousands of SpiralVeyor’s are currently operational world-wide. Suitable for goods: Single bottles, Cans, Jars and Tins Details • Belt width range: 100, 140 or 200 mm | 4, 5.5, 8" • Multi Track: 1-6 parallel belts • Load range: up to 50 kg/m | 34 lb/ft • Speed range: up to 60 m/min | 200 fpm • Elevation: virtually unlimited, commonly per drive 15 m | 50 ft • Belt length: up to per drive system 60 m | 200 ft
