Flue gas probe WDG Insitu
oxygencombustion process

flue gas probe
flue gas probe
flue gas probe
flue gas probe
Add to favorites
Compare this product


Characteristics

Measured value
flue gas, oxygen
Domain
combustion process

Description

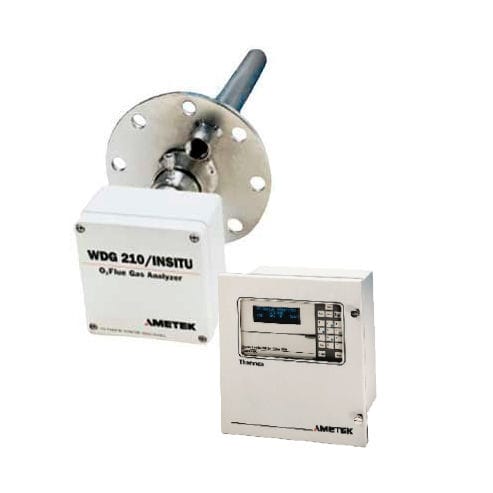

Completely field serviceable, the WDG Insitu is a direct-sensing oxygen (O2) probe suitable for applications where the flue gas temperature does not exceed 800oC (1472oF). With a range of different probe lengths offered, its unique inner/outer probe design enables the removal of cell, heater and thermocouple assembly through the probe head. The removable inner probe assembly expo ses the reference side of the zirconium oxide cell to ambient air, eliminating the need for instrument air at the probe mounting. The outer support stays mounted to the process. Combining easy component access with reduced utility requirements, the WDG Insitu provides a cost-effective, reduced maintenance solution for fired boiler operations in the hydrocarbon processing, metals and mining and power and steam generation industries. COMPLETELY FIELD-SERVICEABLE The unique design means that once the inner probe assembly is removed, the outer probe support pipe allows straight-run access to the insitu filter for cleaning with compressed air. REDUCED UTILITY REQUIREMENTS There is no requirement for instrument air utilities where the probe is mounted, because the inner probe assembly design ensures the zirconium cell is exposed to ambient air on its reference side. SERIES 2000 CONTROL UNIT This microprocessor-based control unit maximizes integration with existing plant or process control systems. It provides a four-line local display, analog outputs, alarms, expanded system diagnostics and an autocalibration option. The WDG Insitu probe is the direct-sensing flue gas analyzer with a unique design for complete field service capabilities – Find out more.
