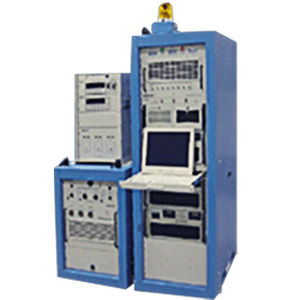

Spacecraft Power Bus Simulator

Description
Provides controlled power stimulus to spacecraft payload subsystems from three independent power sources. The system integrates a Bus Power Monitoring Unit (BPMU) and a Spacecraft (Payload) Protection Unit (SPU) to deliver precise power profiles, monitoring and fast protection for test campaigns and environmental testing including Thermal Vacuum (TVAC).

Features

• Includes BPMU and SPU for combined monitoring and protection
• Enhanced measurement and data-logging for up to 40 channels
• BPMU is relocatable for installation inside Thermal Vacuum (TVAC) chambers to simplify cabling
• Data export and visualization in spreadsheet or graphical formats
• SPU provides 10 μs reaction to out-of-tolerance conditions

Technical specifications

• Model name: Spacecraft Power Bus Simulator
• Function: Provides power stimulus to payload subsystems from three independent power sources
• Includes: Bus Power Monitoring Unit (BPMU) and Spacecraft (Payload) Protection Unit (SPU)
• Measurement & data-logging: up to 40 channels
• BPMU: relocatable to Thermal Vacuum (TVAC) chamber to reduce cabling complexity
• Data display: spreadsheet or graphical formats
• SPU protection response time: 10 μs to out-of-tolerance conditions
