Tensile testing machine CS2Plus series

life cycleflexurecompression

Overview

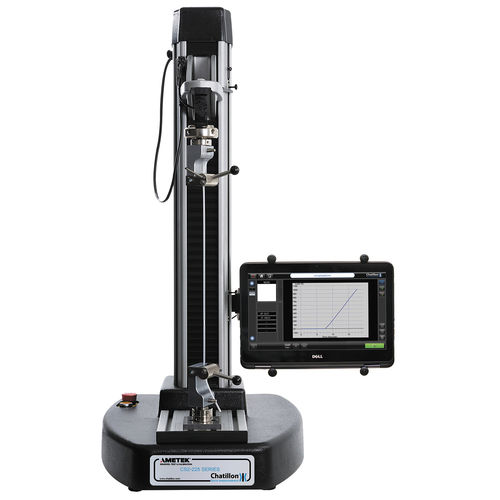

The CS2Plus digital force testing machine by Chatillon is a high-precision, production-oriented tester designed for material and component testing up to 5 kN (1124 lbf). Based on the CS2 platform, it delivers expanded functionality for a wide range of laboratory and production quality-control tasks.

Industries and applications

• Medical devices
• Plastics
• Packaging
• Pharmaceuticals and cosmetics
• Electronics
• Rubber
• Wood and composites

Intuitive operation and user interface
The CS2Plus integrates a 2-in-1 13-inch high-resolution color touchscreen console. The interface provides graphical and tabular result displays and a guided workflow for test setup, execution and report generation, enabling standalone operation without a dedicated PC.

Versatile test capabilities

• Tensile (pull) testing
• Compression (push) testing
• Shear testing
• Flexural (bend) testing
• Advanced multi-stage and custom sequences

Programmable parameters and test functions

• Limit testing (load, displacement and time)
• Break testing
• Cyclic and loop testing
• Multi-stage / user-defined sequences
• Spring rate (stiffness) calculation
• Height/length measurement

Available models

• CS2Plus-1kN (225 lbf): capacity up to 1 kN; throat depth 180 mm; crosshead travel 500 mm.
• CS2Plus-5kN (1124 lbf): capacity up to 5 kN; throat depth 150 mm; crosshead travel 800 mm.

Performance and data acquisition
The CS2Plus offers speed accuracy better than 1% and high-resolution data acquisition with a 100 kHz sampling rate. Results and statistics can be exported in CSV and PDF formats; the system supports automatic result export via RS232 after each test.

Standalone operation
The unit is designed for self-contained use: test configuration, execution and reporting are performed directly from the integrated touchscreen console without external software.

Documentation and firmware
User manuals, data sheets and firmware updates are provided for the CS2Plus platform and the CS2 family to support motion control improvements, reliability and added features.

Specifications / technical data

• Series name: CS2Plus
• Manufacturer / Brand: Chatillon
• Capacity options: CS2Plus-1kN and CS2Plus-5kN
• CS2Plus-1kN: throat depth 180 mm; crosshead travel 500 mm; capacity 1 kN (225 lbf)
• CS2Plus-5kN: throat depth 150 mm; crosshead travel 800 mm; capacity 5 kN (1124 lbf)
• Maximum test capacity: up to 5 kN (1124 lbf)
• Console: 13-inch high-resolution color 2-in-1 touchscreen
• Speed accuracy: better than 1%
• Data sampling rate: 100 kHz
• Data export formats: CSV and PDF; automatic RS232 export after each test
• Supported test types: tensile, compression, shear, flexural, cyclic/loop, multi-stage tests
• Programmable features: limit testing (load/displacement/time), break testing, cyclic/loop, multi-stage/user-defined sequences, spring rate calculation, height measurement
• Operation: standalone (no PC required)
