Silicone gasket ImaInlinePro

EPDMroundfor pharmaceutical products

Product overview

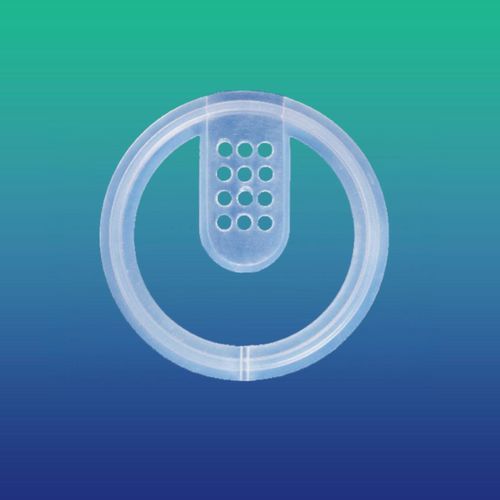

APPL provides a range of spore trap and sensor-validation gaskets designed to support sterility and thermal validation in pharmaceutical and biotech inline processes. These gaskets seal the gap between two ferrules to ensure leak-free operation and include provisions for thermocouple wiring, stop locks, hole plugs and sampling tubes on four sides. Materials available: platinum-cured silicone and EPDM rubber.

Features / Key details

• Manufactured in ISO Class 7 cleanroom environment
• US FDA DMF #32561
• NSF 51 listing for platinum-cured silicone
• Multiple holes/options for thermocouple wires
• Available in customized spore trap sizes
• Options for validation-only, sensor-only and combined validation+sensor configurations

Applications

• Inline process validation
• Sterility validation for pharmaceutical processes
• Thermal mapping and validation studies

SENSOR TC GASKET - table (columns: OD | ID | PCD | THICK | NO OF HOLES | CATALOGUE NO)
OD | ID | PCD | THICK | NO OF HOLES | CATALOGUE NO
50.5 | 22.2 | 43.5 | 6.3 | 1 | TC-S-2250-3871
34.0 | 15.4 | 27.5 | 6.0 | 1 | TC-S-1534-0374
50.5 | 35.8 | 43.5 | 6.0 | 1 | TC-S-3550-0522
22.5 | 10.09 | | 6.8 | 1 | TC-S-1022-0523
50.5 | 22.8 | 43.5 | 6.0 | 1 | TC-S-2350-1619
22.6 | 15.5 | | 5.0 | 1 | TC-S-1522-1620
64.0 | 48.8 | 56.5 | 6.0 | 1 | TC-S-4864-2124
91.0 | 73.1 | 83.5 | 5.5 | 1 | TC-S-7391-3705

VALIDATION TC GASKET - table (columns: OD | ID | PCD | THICK | NO OF HOLES | CATALOGUE NO)
OD | ID | PCD | THICK | NO OF HOLES | CATALOGUE NO
51.9 | 35.1 | 45.5 | 5.0 | 12 | TC-V-3551-3870
50.5 | 22.8 | 43.5 | 5.0 | 4 | TC-V-2250-1464
64.0 | 46.0 | 56.5 | 5.0 | 10 | TC-V-4664-1481
34.0 | 15.7 | 27.5 | 6.0 | 2 | TC-V-1534-1529
199.0 | 97.6 | 110.0 | 6.0 | 16 | TC-V-110119-2826

VALIDATION CUM SENSOR TC GASKET - table (columns: OD | ID | PCD | THICK | NO OF HOLES | CATALOGUE NO)
OD | ID | PCD | THICK | NO OF HOLES | CATALOGUE NO
64.0 | 48.8 | 56.5 | 6.0 | 12 | TC-VS-4864-3323
50.5 | 23.5 | 43.5 | 6.0 | 5 | TC-VS-2350-1669
64.0 | 48.0 | 56.5 | 6.0 | 12 | TC-VS-4864-1673
34.0 | 20.0 | 27.5 | 6.0 | 3 | TC-VS-2034-1674
91.0 | 73.1 | 83.5 | 6.0 | 16 | TC-VS-7391-2825

Technical specifications

• Product name: ImaInlinePro Gasket
• Materials: platinum-cured silicone; EPDM rubber
• Function: seals gap between ferrules for leak-free inline processes
• Provisions: thermocouple wire ports, stop lock, hole plug, sampling tube ports (4-side provisions)
• Manufacturing environment: ISO Class 7 cleanroom
• Regulatory / listings: USFDA DMF #32561; NSF 51 listing for platinum-cured silicone
• Available in customized spore trap sizes and multiple hole configurations
