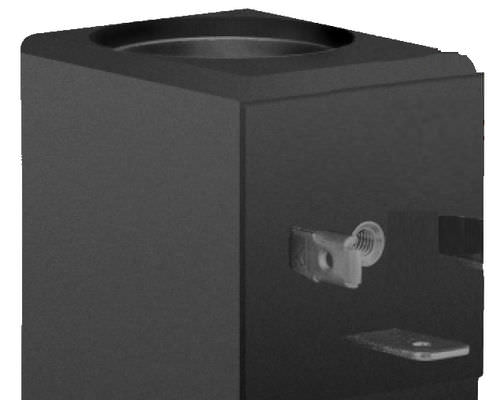

Valve solenoid EVI 5

AC/DCpower

The EVI 5 system by AMISCO includes a wide range of electrical coils suitable for solenoicfoperated pneumatic and hydraulic valves. The EVI 5 coils are designed to fit most of the current applications and offer a wide choice of electrical terminations. The leaded version can be equipped with different connectors upon request. The EVI 5E coil is designed to fit solenoid tubes with 13 or 14 mm dici. The EVI 5M and EVI 5P coils are desiqned to fit solenoid tubes with 13 mm dia. Types, power ratinqs and more technical specifications are described in the following. The coils can be manufactured with different powers or characteristichs upon special agreement. All coils feature: • Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material • Class H 200°C wire according to IEC 317-8 • Built-in magnetic yoke made by low carbon iron • Encapsulation witn high quality custom designed glass filled nylon or thermoplastic polyester. The use of other materials is possible upon special agreements. All coils are rated to Class F and IP65 (with connector and suitable seals) and for continuous service. These coils are designed in accordance to EN 60204.1 and VDE 0580 and can be declared in conformity with 73/23 EEC directive.
