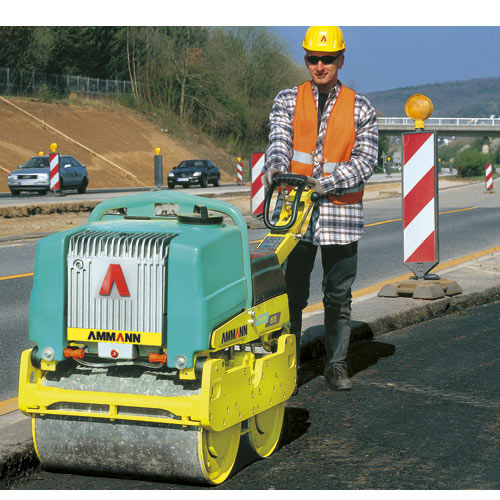

Duplex road roller ARW 65 Yanmar
manual

duplex road roller
duplex road roller
duplex road roller
duplex road roller
duplex road roller
duplex road roller
duplex road roller
duplex road roller
duplex road roller
duplex road roller
Add to favorites
Compare this product


Characteristics

Type
duplex
Specifications
manual
Operating weight

712 kg, 719 kg
(1,569.7 lb, 1,585.1 lb)

Motor power

6.1 kW
(8.29 hp)

Description

The ARW 65 with a YANMAR diesel engine provides 2-in-1 capabilities that help you limit your machine investment. A high-amplitude setting provides a walk-behind roller that performs like it was custom built for work on soils and aggregates. With the flip of a switch the operator can adjust to a low-amplitude setting and have a roller that is a perfect fit in asphalt and bituminous materials. The ARW 65 features scrapers and a 60-litre water tank with sprinkler system to ensure the machine is ready to handle bituminous surfaces when called upon. Electric start is a standard feature. Weights & Dimensions - Net weight standard Machine - 679 kg A = Machine length - 2288 mm B = Drum axle width - 500 mm C = Drum diameter - 400 mm D = Machine height - 1110 mm E = Transport height - 1835 mm F = Machine width - 720 mm G = Drum width - 650 mm Engine - Engine - Yanmar L100N Fuel - Diesel at RPM - 2600 Fuel consumption - 1,2 l Compaction Forces - Max. Vibration frequency - 60 Hz Max. Centrifugal force - 11/21 kN Linear pressure - 5.5 kg/cm Max. compaction depth (soil) - 20/15 cm Max. compaction depth (sand) - 30/25 cm Miscellaneous - Speed (forward) - 4 km/h Speed (backward) - 2.5 km/h Gradeability w./w.o. vibration - 25 % / 45 % Fuel capacity - 4.7 l Hydraulic oil capacity - 20 l Water tank capacity - 60 l
