Combination road roller ARW 65

vibratorymanual

Overview

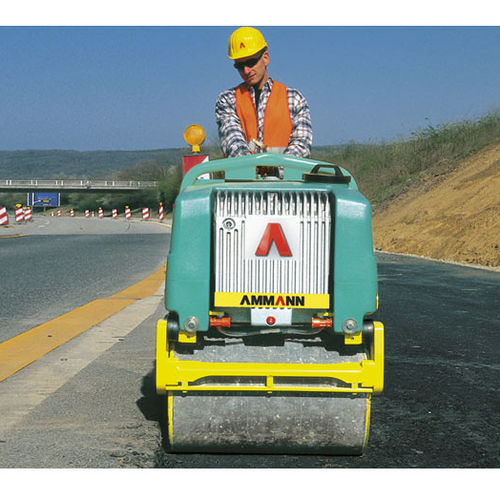

The ARW 65 is a walk-behind roller offering 2-in-1 compaction capability: selectable high-amplitude mode for gravel and soil and low-amplitude mode for asphalt and bituminous surfaces. Available with Hatz or Yanmar diesel engines and designed for easy edge work, low maintenance and safe operation.

Key benefits

• Versatile 2-in-1 design reduces fleet investment
• Simple edge handling for paving and patching tasks
• Low-maintenance concept for high uptime
• Engines compatible with HVO to reduce CO2 emissions

Main features

• Selectable high- and low-amplitude settings
• Two diesel engine options: Hatz 1 D 42 (6.4 kW) or Yanmar L100V (6.1 kW)
• Adjustable eccentric weights
• Low-vibration, height-adjustable handle
• Hydrostatic drive
• Integrated sprinkling system and scrapers
• Automatic parking brake

Standard equipment

• Adjustable eccentric weights
• Low-vibration handle
• Sprinkling system and scrapers
• Hydrostatic drive
• Hatz E-Start jump-start facility
• Hatz hand-start crank
• Ammann colour design and decals
• CE conformity

Options

• Hand protection handle
• Hour counter
• Yanmar E-Start jump-start facility
• Hatz E-Start starting crank
• Working lights
• Maintenance kit
• Customer colour scheme
• Telematics ServiceLink Light

Engine variants (summary)
Manufacturer | Engine model | Fuel | Power (ISO) | Nominal speed | Fuel consumption
Hatz | 1 D 42 | Diesel | 6.4 kW | 2800 rpm | ~2.3 L/h
Yanmar | L100V | Diesel | 6.1 kW | 2800 rpm | ~2.5 L/h

Performance highlights

• Operating weight: 703 kg
• Drum width: 650 mm
• Max centrifugal force: 14 kN

Environment
Both Hatz and Yanmar engine options are compatible with hydrotreated vegetable oil (HVO), a biofuel produced from waste that can reduce CO2 emissions by up to 90%.

Technical specifications

• Model: ARW 65
• Machine type: Walk-behind roller, 2-in-1 (high- and low-amplitude settings)
• Engine options: Hatz 1 D 42 or Yanmar L100V
• Fuel: Diesel (HVO compatible)
• Power (ISO): 6.4 kW (Hatz) / 6.1 kW (Yanmar)
• Nominal speed: 2800 rpm
• Fuel consumption: ~2.3 L/h (Hatz) / ~2.5 L/h (Yanmar)
• Operating weight: 703 kg
• Drum width: 650 mm
• Max centrifugal force: 14 kN
• Drive: Hydrostatic
• Standard and optional equipment as listed above
