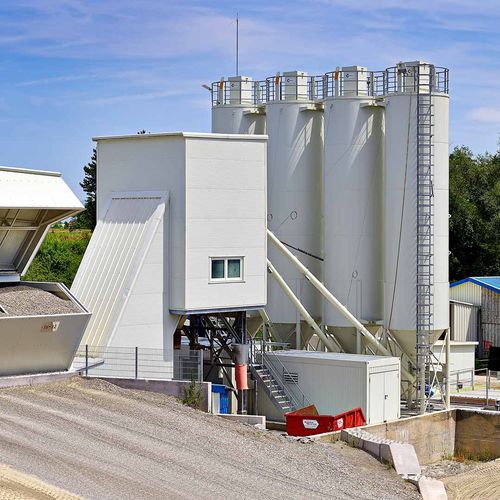

Stationary concrete batching plant CBS S/T L ELBA

minimize dust emissionsingle-shafthorizontal

Overview
This stationary linear concrete batching plant series CBS S/T L ELBA is designed for efficient production and fast transport. The L-version features a skip hoist for aggregate feeding, pre-installed modules to reduce site assembly time, and partly galvanized components to limit corrosion. Available with single-shaft or twin-shaft mixers and multiple scale options.

Key Metrics

• Mixer volume per batch: 2000–3333 l (2.0–3.33 m³)
• Nominal production range: 105–140 m³/h
• Max. concrete output (compacted fresh concrete): 107–138 m³/h (model dependent)
• Active aggregate stock: see model table (typ. 105–312 m³; some models 140–312 m³)

Highlights / Key Advantages

• Generously dimensioned mixing platform for safe operation
• Assembly at +/-0 tolerance; no feeding pit required
• Optional dedusting system
• Partly galvanized components as standard to reduce corrosion
• Optional accommodation for additives and special products
• Foundation-free installation on steel frames (optional)
• Optional winter cladding for the mixing tower

Specifications (table)
Type | Max. concrete output compacted fresh concrete [m³/h] | Mixer volume [l] | Active aggregate stock [m³] | Max. components | Max. cement types
CBS 105 SL | 107 | 2000 | 105-312 | 3-12 | 6
CBS 105 TL | 107 | 2000 | 105-312 | 3-12 | 6
CBS 110 SL | 114 | 2250 | 105-312 | 3-12 | 6
CBS 110 TL | 114 | 2250 | 105-312 | 3-12 | 6
CBS 120 SL | 121 | 2500 | 105-312 | 3-12 | 6
CBS 120 TL | 121 | 2500 | 105-312 | 3-12 | 6
CBS 130 TL | 130 | 3000 | 105-312 | 3-12 | 6
CBS 140 TL | 138 | 3333 | 140-312 | 4-12 | 6

Technical characteristics / Specifications

• Type: stationary linear concrete batching plant (L-version with skip hoist)
• Capacity range (series): approx. 105–140 m³/h depending on model
• Mixer options: single-shaft or twin-shaft; batch volume 2.0–3.33 m³ (2000–3333 l)
• Skip hoist for aggregate feeding (L-version)
• Active aggregate stock capacities vary by model (see table)
• Partly galvanized components to minimise corrosion
• Designed for easy transport and fast, cost-effective installation using pre-installed modules
• Optional features: dedusting system, foundation-free installation on steel frames, winter cladding, accommodation for additives and special products
• Engineered for ease of maintenance
