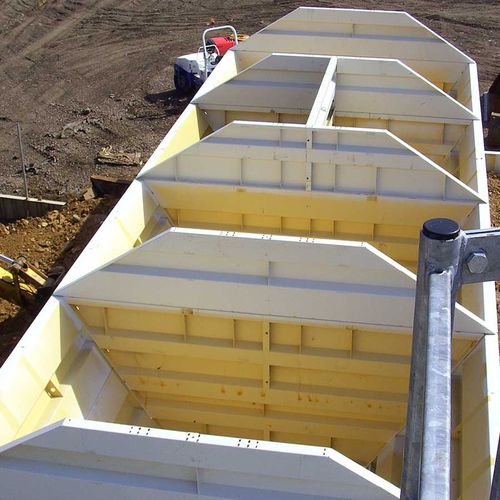

Bulk storage system CEL 35

Overview
Increased capacity for larger plants: CEL 35 linear storage bins provide modular multi-chamber storage for aggregates with controlled discharge suitable for concrete and asphalt plants.

Product type
Linear storage bins (multi-chamber silos) for storage and metered supply of aggregates.

Description
The bins are configured with 2 to 6 chambers. Each chamber size: 35 m³. Modules measure up to 21 metres in length, giving a total capacity between 70 m³ and 210 m³ depending on configuration. Options include rear side coverings, scale testing equipment and calibrating aids. Additional accessories: unbalanced mass vibration generator at the outlet, lighting for the weighing belt and adapter for connecting a heating system.

Options

• Rear side coverings
• Scale testing equipment
• Calibrating aids
• Unbalanced mass vibration generator at the outlet
• Lighting for the weighing belt
• Adapter for connecting a heating system

Table (from Specifications)
Type | Chamber size [m³]
CEL 35 | 35

Technical characteristics

• Type: CEL 35
• Chamber size: 35 m³
• Number of chambers: 2 to 6
• Maximum length: up to 21 metres
• Total capacity range: 70 m³ to 210 m³
• Available options: rear side coverings; scale testing equipment; calibrating aids; unbalanced mass vibration generator at the outlet; weighing belt lighting; heating system adapter
