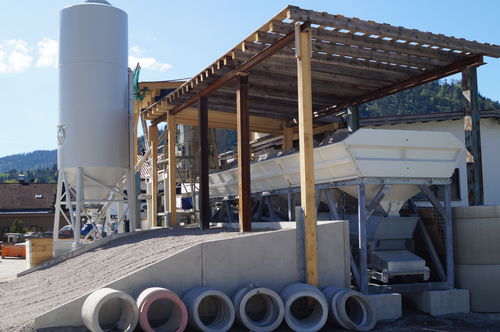

Storage hopper CEL 9

dosingfor concreteconstruction

Overview
The Ammann CEL 9 is an in-line linear dosing unit designed for efficient handling and storage of concrete materials. Configurable with 2 to 6 chambers, units reach up to 21 metres in length and provide a total capacity from 18 m³ to 54 m³. Individual chamber volume is 9 m³. The substructure height is available in 2400 mm or 3000 mm versions depending on installation requirements.

Applications

• Concrete and batching plants
• Material handling and storage for precast and ready-mix operations
• Integration with weighing and batching systems

Options

• Rear panelling
• Scale testing equipment and calibration aids
• Unbalance vibrators at the outlet
• Illumination of the weighing belt channel
• Preparation for heating-system connection

Product family
Linear Storage Bins (CEL series)

Specifications (summary)
Type | Chamber size [m³]
CEL 9 | 9

Technical specifications

• Model: CEL 9
• Chamber count: 2 to 6 chambers
• Maximum length: up to 21 metres
• Total capacity range: 18 m³ to 54 m³
• Chamber size (each): 9 m³
• Substructure height options: 2400 mm or 3000 mm
• Available options: rear panelling; scale testing equipment and calibration aids; unbalance vibrators at outlet; weighing belt channel illumination; preparation for heating-system connection
