Multi-compartment silo CEL 20
with vibrating bottomweighingfor silo

Multi-compartment silo - CEL 20 - Ammann - with vibrating bottom / weighing / for silo

Multi-compartment silo - CEL 20 - Ammann - with vibrating bottom / weighing / for silo - image - 2

Add to favorites

Compare this product

Go to the Ammann website for more information

Characteristics

Type

multi-compartment, with vibrating bottom, weighing

Product applications

for silo, for bulk materials, dry bulk material

Other characteristics

industrial

Capacity

Max.: 120 m³
(4,237.8 ft³)

Min.: 40 m³
(1,412.6 ft³)

Description

Overview

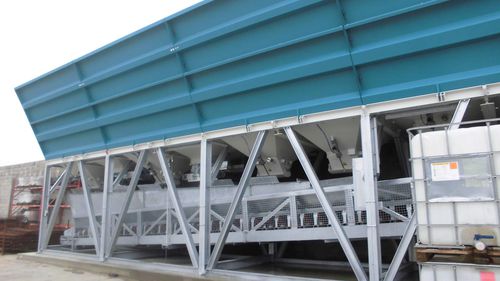

The Ammann CEL 20 is a linear storage bin designed for the handling and intermediate storage of concrete materials in production environments. The system is available with scalable chamber counts and total capacities to fit site requirements.

Key features

Chamber size: 20 m³
Number of chambers: 2 to 6
Maximum bin length: up to 21 m
Total capacity range: 40 m³ to 120 m³
Sub‑construction heights: 2400 mm or 3000 mm (site dependent)

Options and equipment

Rear side coverings
Scale testing equipment and calibration aids
Unbalanced mass vibration generator at the outlet
Lighting for the weighing-belt channel
Adapter for connection to a heating system

Specifications table
Type | Chamber size [m³]
CEL 20 | 20

Technical characteristics

Manufacturer: Ammann
Model: CEL 20
Product type: Linear storage bin
Chamber size (per table): 20 m³
Number of chambers: 2–6 (configurable)
Total capacity: 40–120 m³
Maximum length: up to 21 m
Sub‑construction heights: 2400 mm or 3000 mm
Available options: rear coverings; scale test equipment; calibration aids; outlet vibration generator; weighing-belt lighting; heating system adapter
