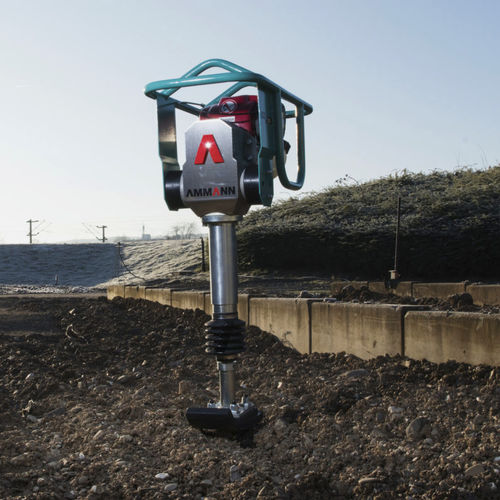

Tamping rammer ATR 30

gasoline engine

Product overview
The ATR 30 is Ammann's lightest rammer, engineered for trenches and confined areas. With a low centre of gravity and exceptional balance it delivers smooth forward movement while a high percussion rate provides compaction power. The reduced-vibration, multi-sided handle improves operator comfort and access in tight spaces.

Key figures

• Operating weight: 29 kg (icon); 32 kg (stated in text)
• Working/foot width: 130 mm (standard); 80 mm (option)
• Centrifugal force: 2 kN
• Power output (ISO): 0.9 kW

Standard

• Working width 130 mm
• Low-vibration handle
• CE conformity
• Standard hydraulic oil
• Ammann colour design and decals
• Central lifting point

Options

• Working width 80 mm
• Maintenance kit
• Customer colour scheme
• Certificate of origin
• Biodegradable hydraulic oil
• Additional printed documentation

Engine (specification table)
Manufacturer: Honda
Engine model: GX 35
Fuel: Petrol
Power output ISO: 0.9 kW
Nominal speed: 5500 rpm

Application and benefits
Designed for narrow trenches and restricted-access sites, the ATR 30 offers easy manoeuvring, reduced operator fatigue and safe operation through its balance and low centre of gravity. Easy engine access simplifies maintenance.

Technical specifications

• Model name: ATR 30
• Brand: Ammann
• Engine: Honda GX 35
• Power output (ISO): 0.9 kW
• Fuel type: Petrol
• Nominal speed: 5500 rpm
• Operating weight: 29 kg (icon) — 32 kg (product text)
• Working/Foot width: 130 mm (standard); 80 mm (option)
• Centrifugal force: 2 kN
• Standard features and available options as listed above
