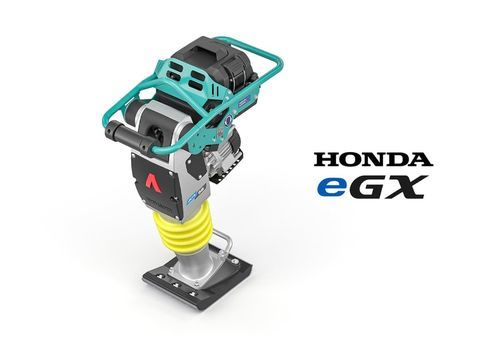

Tamping rammer eATR 68

Product overview
The eATR 68 covers a lot of ground and delivers high compaction power every step of the way – now with electric power. A zero emissions machine designed for indoor and confined space work. It pairs high compaction performance with an electric drive and interchangeable, fast-charging battery technology.

E-drive power
This electric-drive machine offers strong forward movement performance for a rammer and eliminates onsite emissions during operation.

Battery
The long-lasting, fast-charging battery is interchangeable with other Ammann e-plates.

Highlights

• Zero emissions electric drive
• Long battery life and fast charging, battery interchangeable with other Ammann e-plates
• Limited vibration to the operator / low-vibration handle
• Easy-to-grip handle and maintenance-free parts
• Versatile shoe/working width options

Key data (icons & values shown on page)

• Operating weight: 70 kg
• Foot / working width (standard): 280 mm
• Centrifugal force: 13.5 kN
• Typical power output (ISO): 1.8 kW
• Nominal speed: 3600 rpm

Standard

• Working width 280 mm
• Low-vibration handle
• 3-Speed-selection
• CE conformity
• Standard hydraulic oil
• Ammann color design and decals
• Central lifting point

Options

• Honda battery
• Honda charger
• Working width 230 mm
• Transport wheels (note: not for foot long)
• Maintenance kit
• Customer color scheme
• Certificate of origin
• Hydraulic oil biodegradable

Engine / Drive (specification table)
Manufacturer: Honda
Engine model: GXE 2.0
Fuel: Electric Drive
Power output (ISO): 1.8 kW
Nominal speed: 3600 rpm

Additional product notes
Designed for high compaction performance with minimal operator vibration. Suitable for indoor and confined-space compaction where zero local emissions and low noise are priorities.

Technical data / specifications

• Model: eATR 68
• Operating weight: 70 kg
• Standard working width: 280 mm (option: 230 mm)
• Foot width: 280 mm
• Centrifugal force: 13.5 kN
• Power output (ISO): 1.8 kW
• Nominal speed: 3600 rpm
• Drive: Electric drive (zero emissions)
• Battery: Long-lasting, fast-charging, interchangeable with Ammann e-plates
• Handle: Low-vibration / easy-to-grip design
• Speeds: 3-speed selection
• Conformity: CE
• Standard hydraulic oil (biodegradable available as option)
• Central lifting point for handling
• Available options: Honda battery, Honda charger, transport wheels, maintenance kit, custom color scheme, certificate of origin
