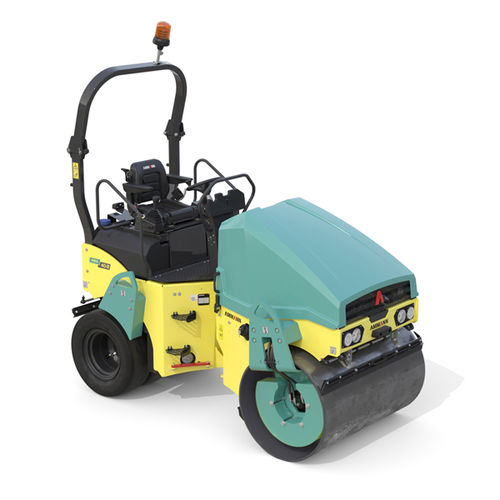

Tandem road roller ARX 40-2C

combinationarticulated

The Ammann ARX 40-2C Tandem Roller makes it even easier for operators to work next to obstructions such as curbs. It also is a combination roller, with a drum in front and pneumatic tyres in the rear. The roller, with a drum width of 1300 mm (51.2 in), features a new articulating joint that enables quick drum adjustment from in-line to off-set configurations. Rollers that are off-set are able to work close to obstructions. The adjustment between in-line and offset configurations is done manually and is easy for operators to make. The combination feature provides a number of added benefits. The tyres provide a kneading effect, helpful on certain types of asphalt mixes and temperatures. The tyres also are exceptional at sealing joints. The roller features Kubota engines that meet US Tier 4 Final emissions standards and are EU Stage V ready. It includes an intuitive dashboard layout, a redesign of the front and rear of the machine and a new LED light system. Reduced sound levels improve operator safety, as does the new light system. A = MACHINE LENGTH - 2915 mm (114.8 in) B = WHEELBASE - 2000 mm (78.7 in) C = MACHINE HEIGHT - 2840 mm (111.8 in) D = MACHINE HEIGHT (FOLDED ROPS) - 2150 mm (84.6 in) E = DRUM WIDTH - 1300 mm (51.2 in) E = TIRE-AXLE WIDTH - 1275 mm (50.2 in) G = MACHINE LENGTH (FOLDED ROPS) - 3000 mm (118.1 in) H = GROUND CLEARANCE - 330 mm (13 in) I = DRUM DIAMETER - 850 mm (33.5 in) J = DRUM SHELL THICKNESS - 18 mm (0.7 in) K = MACHINE WIDTH (TOTAL) - 1385 mm (54.5 in)
