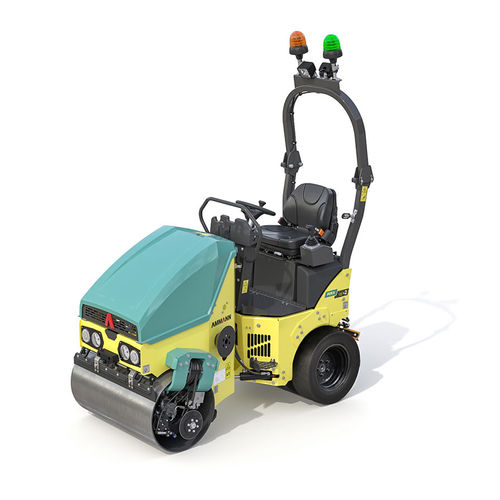

Single-cylinder road roller ARX 16-2C

combination

The Ammann ARX 16-2C is a combination roller that utilises a steel drum in front and pneumatic tyres in the rear for higher machine traction and improved sealing of surfaces. The combi version performs well on both soil and asphalt. Like other light tandem rollers, the ARX 16-2C works flush against curbs and other objects and eliminates the need for special edge compaction efforts. The roller is powered by a Kubota engine. A new vibratory circuit setting delivers expanded frequencies that facilitate quicker compaction. Intelligent drive modes (soft/hard) protect operators and prevent them from damaging sensitive surfaces A = MACHINE LENGTH - 2140 mm B = WHEELBASE - 1475 mm C = MACHINE HEIGHT - 2400 mm D = MACHINE HEIGHT (FOLDED ROPS) - 1725 mm E = DRUM WIDTH - 900 mm E = TIRE-AXLE WIDTH - 890 mm G = MACHINE LENGTH (FOLDED ROPS) - 2330 mm H = GROUND CLEARANCE - 230 mm H1 = SIDE CLEARANCE - 370 mm I = DRUM DIAMETER - 580 mm J = DRUM SHELL THICKNESS - 13 mm K = MACHINE WIDTH (TOTAL) - 947 mm
