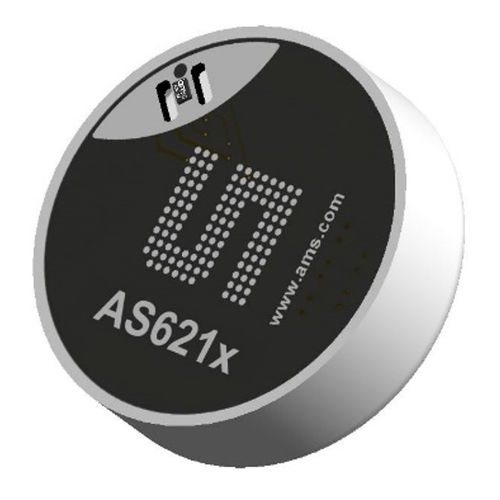

Thermocouple AS621x Series

digitalfor mobile applicationssmall

AS621x Temperature Sensors High accurate digital temperature sensors (AS6212, AS6214 & AS6218) Features - Ultra low power consumption - High temperature accuracy - Small integration size (WLCSP) - Complete sensor system with serial bus connection - Alert functionality for exact temperature control Benefits - Long battery life and low self heating - “Easy to Use” solution, i.e. no calibration or linearization needed - Minimal board space and fast reaction time - 3 different versions (AS6212, AS6214 & AS6218) to optimally meet the accuracy -requirements - 3 different versions (AS6212, AS6214 & AS6218) with different temperature accuracies in order to perfectly match customer requirements. Product parameters Interface: I²C Supply Voltage [V]: 1.71 to 3.6 Consumption [µA]: 6 @ 4 samples/s Dimension [mm]: 1.5 x 1 Ambient Temp. Range [°C]: -40 to 125 Accuracy: ±0.2°C (-10°C to 65°C, AS6212) Conversion Time [ms]: 32 General Description The AS621x family is a complete digital sensor system, designed for the needs of various markets. It features 8 I²C addresses to serve complex design needs. This is especially useful in the prototyping phase of a product where several heat sensitive areas might need monitoring but without needing to reserve additional systems application processor resources. It is a fully calibrated and linearized sensor system that is easy to integrate in any digital system. The family has 3 members (AS6212, AS6214 & AS6218) with different temperature accuracies to give customers the best option for their needs. The highest performing AS6212 has an accuracy of +/- 0.2°C from -10°C to 65 °C.
