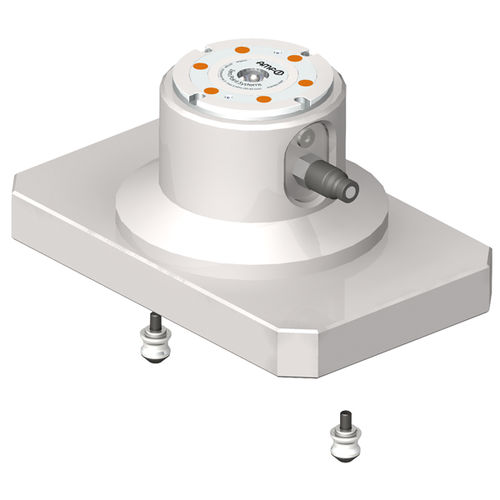

Steel zero-point clamping unit 6204K seriessupport plate
Add to favorites
Compare this product
Characteristics
- Other characteristics
- steel, support plate
Description
Hydraulic unlocking.
Pneumatic blow-out.
Clamping modules' contact surface: Steel, stainless and hardened.
Base plate: Steel, unhardened.
Repetition accuracy < 0.005 mm.
Design:
Hydraulic clamping bracket for optimised clamping times on K10.2 clamping stations. Installation clamping module K10.2 with 4-way indexing. Bottom-mounted clamping nipple.
The insertion dimension is 200 mm. The quick coupling plug is pre-mounted, and the integrated blow-out function can be individually connected.
