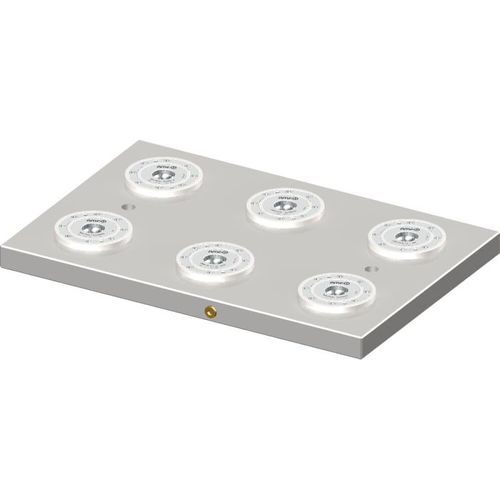

Hydraulically-operated clamping station 424119

Short description

• Hydraulic release
• Clamping module size: KH20
• Opening operating pressure: 50 - 60 bar
• Contact surface of clamping modules: stainless and hardened steel
• Base plate: steel, unhardened
• Repeatability: < 0.005 mm

Variants (excerpt)
Order no. | Size | Clamping/closing force [kN] | Holding force* [kN] | Weight [kg] | Your price
424119 | KH20 | 6 x 20 | 6 x 55 | 72.4 | not specified
426734 | KH10 | 6 x 10 | 6 x 25 | 17.5 | not specified
426759 | KH40 | 6 x 40 | 6 x 105 | 178.5 | not specified

Dimensions (variant 424119)
A: 396 mm
B: 596 mm
HA: 10 mm
K: 18 mm
L: 50 mm
L1: 200 mm
L2: 566 mm
L3: 366 mm
ØN: 20 mm
R: G1/4
S: 48 mm
SM: 200 mm

Notes

• On request, mounting holes can be made in the base plate according to your specifications.
• Matching quick coupling: order no. 427872 (socket) and 427856 (plug).
• Please refer to the installation manual.
• On request: other dimensions, key dimensions and number of clamping modules.

CAD / Downloads

• 3D CAD models (embedded CAD viewer / download available).
• PDF datasheet (English) available.

Technical specifications

• Order no.: 424119
• Product type: clamping station
• Operation: hydraulic
• Clamping module size: 20 (KH20)
• Clamping/closing force [kN]: 20 (per module, e.g. 6 x 20 for 6‑station version)
• Holding force [kN]: 55 (per module, e.g. 6 x 55 for 6‑station version)
• Opening operating pressure: 50 - 60 bar
• Contact surface clamping modules: stainless and hardened steel
• Base plate: steel, unhardened
• Repeatability: < 0.005 mm
• Weight (variant 424119): 72.4 kg
• Dimensions (variant 424119): A=396 mm, B=596 mm, HA=10 mm, K=18 mm, L=50 mm, L1=200 mm, L2=566 mm, L3=366 mm
• Piping connection: R = G1/4
• EAN: 4020772424114
• CTN (HS code): 84662020
• REACH: yes (Validation: 14/06/2023)
• ROHS: yes
• Maintenance note: see printed and online media or enclosed operating manual
