Electrically switched electro lifting magnet CGMA R series

handlingcircular

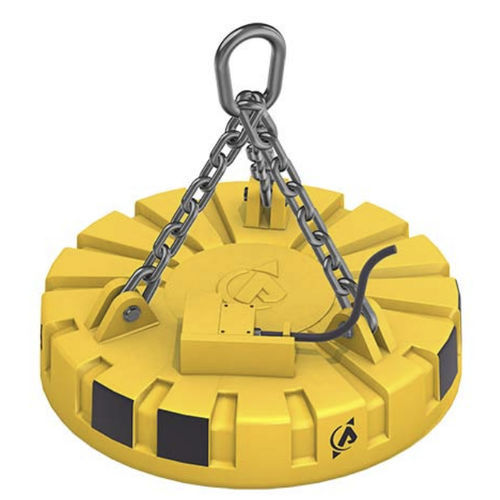

The CGMA Rs are circular lifting electromagnets recommended for : •loading and unloading trucks and railroad cars, •cleaning worksites, roads or railways, •eliminating bulky ferrous materials or industrial remnants, •steel and cast iron foundries. TECHNICAL DESCRIPTION The CGMA Rs consist of a singleblock frame forming a high-performance magnetic circuit. The main components are : •a ribbed foundry frame made of high magnetic permeability cast steel. The mechanical fittings and support surfaces are machined, •three suspension rings with pins and washers, •an aluminum conductor winding with reinforced insulation, •a wear plate made of non-magnetic manganese steel, •a fill-in resin blocking and insulating the coil in the frame (H or C class depending on usage), •a double electric box allowing external connection while protecting the internal windings. •A bumper cast with the frame protects them against lateral mechanical shocks. INSTALLATION MODALITIES The CGMA Rs can be installed on any lifting device (overhead crane, truck crane, gantry crane, steam shovel, etc.). They are designed for individual usage and are suspended by a chain with three common suspension ring strands. The electrical connection is made using a power cable with 3 large-section conductors externally protected. SPECIFICATIONS Performances vary according to various parameters : •characteristics of the products to be treated •characteristics of the ferromagnetic elements to be lifted •temperature of the products.
