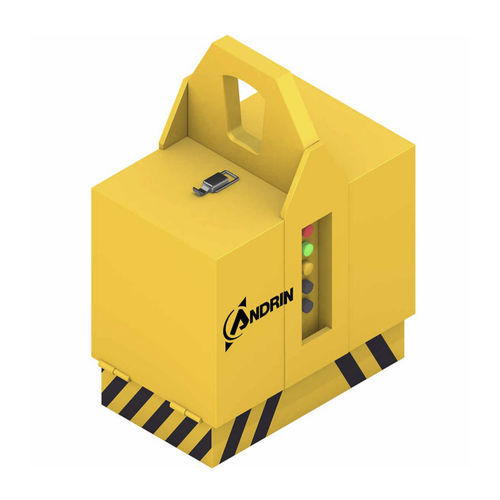

Electrically switched electro lifting magnet RTB series

handlingbattery-operatedtripolar

Our RTB magnet serie consists of rectangular three-pole electromagnets with incorporated battery and charger. They are recommended for use in a workshop to handle metal parts in bulk or individually : •parts for machining, •loading of workstations, •shipping, •cleaning of machines. Thanks to their robustness and reliability, they are perfect for intense and daily applications in : •mechanical workshops, •boiler making and body work, •iron & steel dealer activities, •cleaning and servicing. TECHNICAL DESCRIPTION The RTB are built around a selfsupporting frame ensuring magnetic conductibility, protection, suspension and support of the device's electric and magnet-ic components. The main components are : •a mechanically fitted-welded frame, made of high magnetic permeability steel. The mechanical fittings and support surfaces are machined for a better conditioning of the magnets, •a suspension yoke continuously welded to the frame, •a concentric winding with reinforced insulation, •a fill-in resin blocking and insulating the coil in the frame (H or C class depending on usage), •a removable protective battery cover, •a standardized, service-free sealed 12 V battery, providing an electric capacity of 52 Ah or 110 Ah, •a regulated electronic charger incorporated in the casing, •a casing protecting the battery and electronic components.
