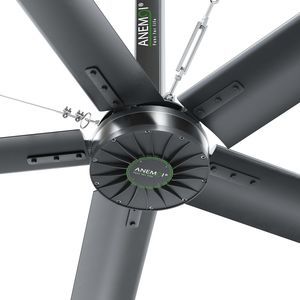

Ceiling-mounted fan AIRPRO M
low-noisehigh-flowhigh-performance

Ceiling-mounted fan - AIRPRO M - Anemoi Fans - low-noise / high-flow / high-performance
Ceiling-mounted fan - AIRPRO M - Anemoi Fans - low-noise / high-flow / high-performance
Ceiling-mounted fan - AIRPRO M - Anemoi Fans - low-noise / high-flow / high-performance - image - 2
Ceiling-mounted fan - AIRPRO M - Anemoi Fans - low-noise / high-flow / high-performance - image - 3
Ceiling-mounted fan - AIRPRO M - Anemoi Fans - low-noise / high-flow / high-performance - image - 4
Ceiling-mounted fan - AIRPRO M - Anemoi Fans - low-noise / high-flow / high-performance - image - 5
Ceiling-mounted fan - AIRPRO M - Anemoi Fans - low-noise / high-flow / high-performance - image - 6
Ceiling-mounted fan - AIRPRO M - Anemoi Fans - low-noise / high-flow / high-performance - image - 7
Add to favorites
Compare this product

Characteristics

Type
ceiling-mounted, low-noise, high-flow, high-performance
Configuration
propeller
Function
ventilation, for air circulation
Drive mechanism
EC motor, brushless motor
Material
aluminum
Applications
industrial
Other characteristics
large-diameter, radio-controlled, flat
Air flow

Max.: 588,000 m³/h
(20,765,024.032 ft³/h)

Min.: 480,000 m³/h
(16,951,040.026 ft³/h)

Diameter

Max.: 5,000 mm
(196.85 in)

Min.: 3,800 mm
(149.606 in)

Rotational speed

Max.: 100 rpm
(628 rad.min-1)

Min.: 75 rpm
(471 rad.min-1)

Noise level

Max.: 40 dB

Min.: 0 dB

Description

OverviewThe AIRPRO M is a lightweight, energy-efficient ceiling fan with an ultrathin 133 mm profile, designed for installations up to 7 m. Its brushless EC motor ensures efficient operation, low energy consumption and long service life.Key features:EC brushless motor without gears133 mm ultrathin profileExtremely low noise (< 40 dBA)7 high-performance aluminum bladesInstallation height up to 7 mRemote control (RF) or Magnocontrol system (Modbus)Customizable finishesApplicationsSuitable for warehouses, gyms, workshops and commercial areas requiring efficient ventilation with low energy consumption.Technical specificationsModel: AIRPRO MDiameter variants: 3.8 m, 4.2 m, 5.0 mAvailable colors: Black, Light greyMotor: EC brushless (no brushes)Equipment thickness: 133 mm (ultrathin design)Noise: < 40 dBABlades: 7 high-performance aluminum bladesMaximum installation height: up to 7 mControls: RF remote or Magnocontrol system (Modbus)Options: customizable finishesSpecifications by diameter/version:3.8 m — Power: 350 W; Max speed: 100 rpm; Airflow: 480,000 m3/h; Coverage: 720 m²; Weight: 106 kg4.2 m — Power: 450 W; Max speed: 90 rpm; Airflow: 510,000 m3/h; Coverage: 760 m²; Weight: 123 kg5.0 m — Power: 600 W; Max speed: 75 rpm; Airflow: 588,000 m3/h; Coverage: 900 m²; Weight: 128 kg
