Ceiling-mounted fan AIRPRO S 2020

low-noiseaxialventilation

Product overview

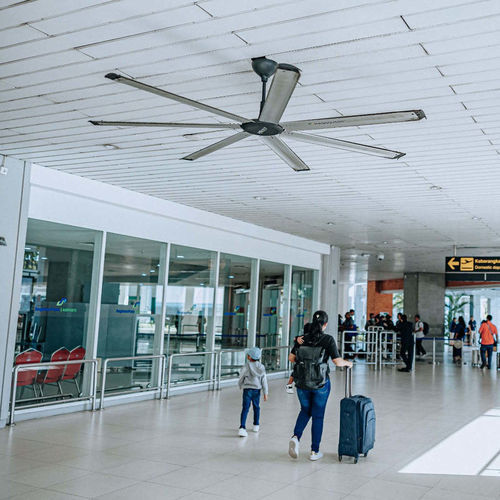

The AIRPRO S 2020 is an axial ceiling fan with an integrated motor, designed to provide efficient ventilation with low power consumption and low acoustic emission. Its slim 5 cm profile and industrial design allow aesthetic integration in residential, commercial and industrial ceilings. Controls compatible with RF and Modbus enable building automation integration.

Key features

• Motor power: variants reported at 100 W; some references indicate 200–250 W depending on configuration.
• Slim profile: overall thickness 5 cm for discreet ceiling installation.
• Available diameters: 1.5 m, 2.0 m, 2.5 m, 3.0 m (other listings mention 2.4 m and 3 m).
• Blades: 5 or 7 aluminium blades, shaped to reduce noise and vibration.
• Speed variants: up to 180, 150, 130, 95, 70 rpm depending on model.
• Controls: RF and Modbus compatibility for integration with automation systems.
• Installation: recommended for ceilings up to 5 m height.
• Finishes: Black and Light Grey.

Example specifications by variant

• Variant A: Power: 100 W · Max. speed: 180 rpm · Air flow: 29 711 m³/h · Coverage: 99 m² · Weight: 14 kg
• Variant (ex.2): Power: 100 W · Max. speed: 130 rpm · Air flow: 35 653 m³/h · Coverage: 119 m² · Weight: 16 kg
• Variant (ex.3): Power: 100 W · Max. speed: 95 rpm · Air flow: 41 595 m³/h · Coverage: 139 m² · Weight: 18 kg
• Variant (ex.4): Power: 100 W · Max. speed: 70 rpm · Air flow: 47 538 m³/h · Coverage: 158 m² · Weight: 20 kg

Installation and use notes

• Designed for continuous operation with low acoustic emission; select variant based on required coverage and ceiling height.
• Control options allow integration with building management systems or local RF controllers.
• Verify variant weight and diameter for mounting requirements and structural support.

Technical specifications

• Model: AIRPRO S 2020
• Thickness: 5 cm
• Power: 100 W (variants reported up to 200–250 W)
• Max. speeds: 180 / 150 / 130 / 95 / 70 rpm (depending on variant)
• Air flow examples: 29 711 / 35 653 / 41 595 / 47 538 m³/h
• Coverage examples: 99 / 119 / 139 / 158 m²
• Weights by variant: 14 / 16 / 18 / 20 kg
• Blades: aluminium (5 or 7)
• Diameters available: 1.5 m, 2.0 m, 2.5 m, 3.0 m
• Controls: RF, Modbus
• Max. recommended ceiling height: 5 m
