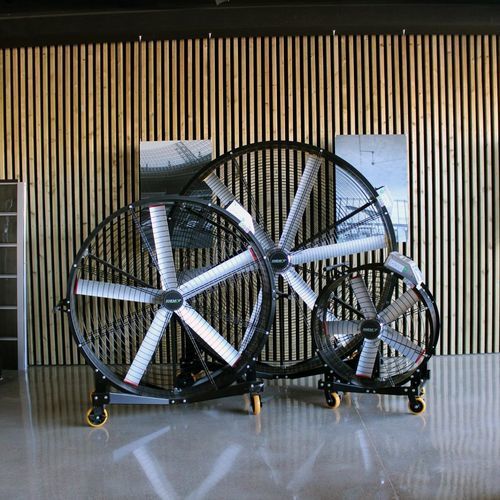

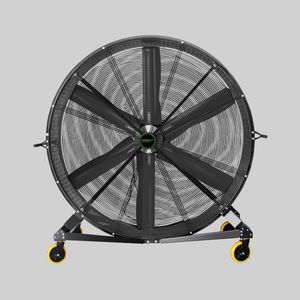

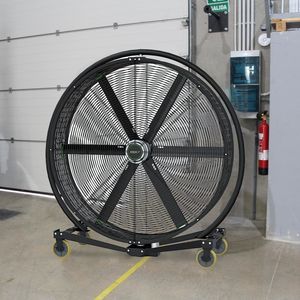

Mobile fan AIRVAN

IP55for air circulationventilation

Description
The AIRVAN is a mobile HVLS fan designed to provide high‑volume ventilation for large and temporary spaces. Suitable for events, staging areas, temporary warehouses and outdoor use, the wheeled base enables easy relocation and plug & play operation avoids the need for fixed mounting.

Key features

• Available diameters: 0.9 m, 1.5 m, 1.9 m and 2 m.
• Color: Black.
• Power: from 0.5 kW to 0.96 kW depending on version.
• Maximum speeds: from 700 rpm down to 260 rpm depending on version.
• Airflow: from 16,800 m³/h up to 102,000 m³/h depending on model.
• Coverage: approximately 55 m² up to 340 m² depending on model.
• Weight: approx. 57 kg to 175 kg depending on configuration.
• Protection rating: IP55.
• Design: plug & play, mobile (wheeled base), no fixed installation required.

Specifications by diameter
0.9 m — Power: 0.5 kW — Max speed: 700 rpm — Airflow: 16,800 m³/h — Coverage: 55 m² — Weight: 57 kg
1.5 m — Power: 0.95 kW — Max speed: 400 rpm — Airflow: 43,200 m³/h — Coverage: 145–185 m² — Weight: 103–128 kg
1.9 m — Power: 0.95 kW — Max speed: 280 rpm — Airflow: 72,000 m³/h — Coverage: 240–305 m² — Weight: 137–162 kg
2 m — Power: 0.96 kW — Max speed: 260 rpm — Airflow: 102,000 m³/h — Coverage: 340 m² — Weight: 175 kg

Technical specifications

• Commercial designation: AIRVAN
• Brand: Anemoi Fans
• Available diameters: 0.9 m; 1.5 m; 1.9 m; 2 m
• Nominal power by variant: 0.5 kW; 0.95 kW; 0.96 kW
• Maximum speed by variant: 700 rpm; 400 rpm; 280 rpm; 260 rpm
• Nominal airflow by variant: 16,800 m³/h; 43,200 m³/h; 72,000 m³/h; 102,000 m³/h
• Estimated coverage by variant: 55 m²; 145–185 m²; 240–305 m²; 340 m²
• Approximate weight by variant: ~57 kg; 103–128 kg; 137–162 kg; 175 kg
• Protection rating: IP55
• Color: Black
• Installation: plug & play, mobile base with wheels for relocation, no fixed mounting required
