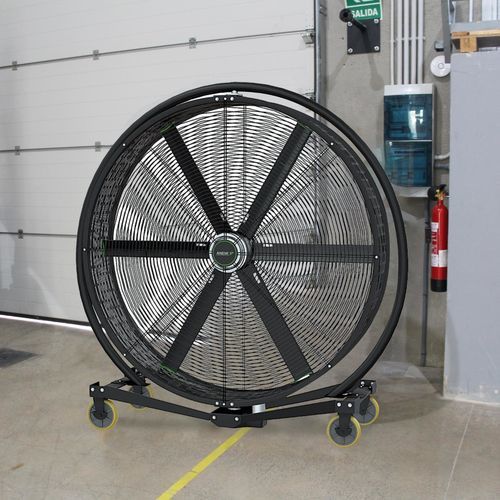

IP55 fan AIRVAN Phigh-flowmobileaxial
Add to favorites
Compare this product
Characteristics
- Type
- IP55, high-flow, mobile
- Configuration
- axial
- Function
- for air circulation, ventilation
- Drive mechanism
- electrically-powered
- Applications
- commercial, industrial, for outdoor use
- Air flow
Min.: 43,200 m³/h
(1,525,593.602 ft³/h)Max.: 72,000 m³/h
(2,542,656.004 ft³/h)- Diameter
Min.: 150 mm
(5.906 in)Max.: 200 mm
(7.874 in)- Rotational speed
Min.: 280 rpm
(1,759 rad.min-1)Max.: 400 rpm
(2,513 rad.min-1)
Description
Description
The AIRVAN P fan is designed to deliver high airflow and mobility in a compact format, suitable for events, exhibition halls, light industrial buildings or outdoor areas where substantial air volume is required without fixed large equipment.
Key features
Options
Technical specifications
The AIRVAN P fan is designed to deliver high airflow and mobility in a compact format, suitable for events, exhibition halls, light industrial buildings or outdoor areas where substantial air volume is required without fixed large equipment.
Key features
- Wheeled base for easy repositioning
- Robust mobile structure
- High air flow for broad coverage
- Lighter version compared with XL models for greater versatility
- Suitable for quick installation and intermittent or continuous operation
Options
- Available diameters: 150P, 200P
- Color: Matte black
Technical specifications
- 150P: Power 0.95 kW; Max speed 400 rpm; Airflow 43200 m3/h; Protection: IP55; Weight: 128 kg
- 200P: Power 0.95 kW; Max speed 280 rpm; Airflow 72000 m3/h; Coverage: 305 m2; Weight: 162 kg
