horizontal baling press / top-loading / channel / for automobiles
Low Production Volume Baler series

{{requestButtons}}

Characteristics

  • Orientation:

    horizontal

  • Loading:

    channel, top-loading

  • Product applications:

    solid waste, for cardboard boxes, for paper, for packaging, for plastic bottles, for recycled bottles, for plastics, metal, for plastic film, for packaging, for small parts, paper, for strips, for automobiles, for aluminum

  • Other characteristics:

    single-chamber, automatic, compact, high-density

  • Compression power:

    Min.: 400 kN

    Max.: 600 kN

  • Bale weight:

    Min.: 200 kg (441 lb)

    Max.: 500 kg (1,102 lb)

Description

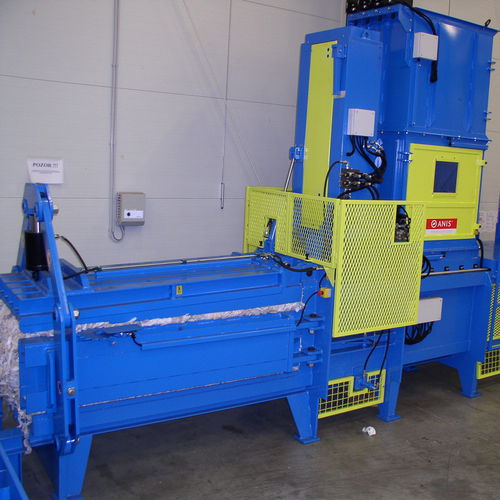

LOW Volume Baler

BASIC AND FUNCTIONAL BALER FOR MAKING THE BEST MILL-SIZED BALE IN THE MOST EFFICIENT WAY

OVERVIEW
It is user-friendly, very economically priced and safe a small volume channel shear baler series or optionally clearance baler with horizontal or optionally vertical wire tying which offers solutions to all small load operations requiring a fully automatic baler. This baseline baler is easy to control, maintenance-free and has no unnecessary options.
This baler series has short channel thus the installation requires minimum floor space. It has easier and cheaper construction, so these machines are suitable for less intensive work.

High specific pressing power provides a high compaction of the material and consequently an optimum full truck load.

Very competitively priced, quick return on investment.

Most Suitable for:
- Printers and Cardboard-making plants, where material is air-fed, shredded or trimmed.
- This is the ideal baler for most grades of shredded paper, cardboard, packaging and as well as other technical fibres.

Machines are available with hopper sizes, feed openings and power units tailored to suit the application in hand.
•Sliding press ram on wearing plates
•Pressing force: 50 - 60 Tonnes
•Bale size: 750 x 750mm and 1.100 x 750 mm
•Main hydraulic motor: 15, 22 or 30kW
•Feed opening 1.000mm and 1.300 mm
