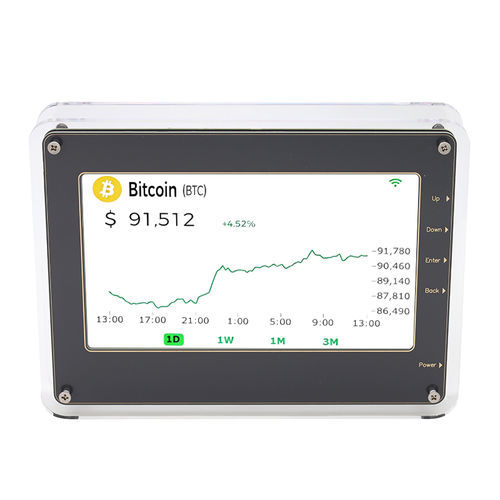

LED display module TPV070

TFT LCDcolor800 x 480

This customizable 7-inch TFT display is designed for real-time cryptocurrency monitoring and is powered by ESP32. It offers a clear and vibrant display, accurate data, and real-time updates for multiple cryptocurrencies, making it ideal for desktop data display applications.

Features

• 7-inch TFT LCD display
• Accurate data representation
• Real-time update capability
• Displays multiple currencies (BTC, ETH, SOL, XRP, DOGE, AAVE, LINK)
• Luminance of 600 cd/cm²
• Supports historical curve viewing
• Reliable and stable performance
• Balanced design for portability and usability

Specifications

• Display
  • Display Type: 7.0 Inch
  • Type: TFT
  • Resolution: 800x480
  • Viewing angle: ALL
  • Dimensions (WxHxD): 165x100x3.5mm
  • Active area: 153.84(H)×85.632(V) mm
• I/O Ports
  • USB: USB2.0 x1
• Button Functions
  • Up: Move upward
  • Down: Move downward
  • Enter: Confirm function
  • Back: Return to the previous
• DC Characteristics
  • Power supply: DC 5V
  • White LED voltage: DC 9V (IF=180mA)
  • Luminance: 600 cd/cm² (IF=180mA)
• Environment
  • Working Temperature: -20°C~70°C
  • Storage Temperature: -30°C~80°C
• Physical Characteristics
  • Machine size (mm): 200x147x33.5mm
  • Gross weight: 1293.2g
  • Package size (Mailbox): 280x200x70mm
