LED display module TSV070

TFT LCDcolor800 x 480

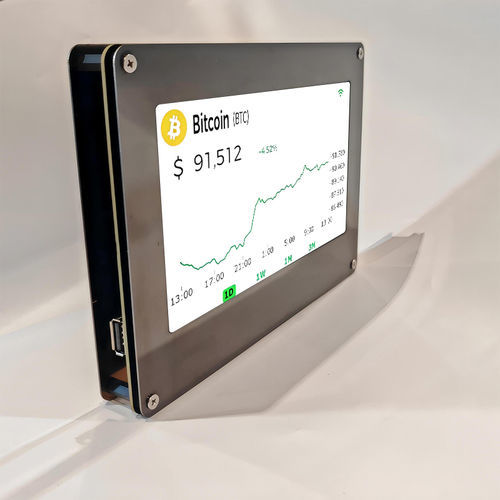

This customizable 7-inch TFT ESP32 smart display is designed for real-time cryptocurrency monitoring. It features a vertical metal plate design and operates without a built-in battery, making it suitable for desktop data display applications. The device provides accurate, real-time updates and supports the display of multiple cryptocurrencies including BTC, ETH, SOL, XRP, DOGE, AAVE, and LINK. With a luminance of 600 cd/cm², it ensures clear visibility and supports historical curve viewing for data analysis. The display is engineered for reliability and stable performance, balancing portability with usability.

Features

• 7-inch TFT LCD display
• Accurate data monitoring
• Real-time updates
• Supports display of multiple currencies (BTC, ETH, SOL, XRP, DOGE, AAVE, LINK)
• Luminance: 600 cd/cm²
• Historical curve viewing supported
• Reliable and stable performance
• Balanced portability and usability

Specifications

• Display
  • Display Type: 7.0 Inch
  • Type: TFT
  • Resolution: 800x480
  • Viewing angle: ALL
  • Dimensions (WxHxD): 165x100x3.5mm
  • Active area: 153.84(H)×85.632(V) mm
• I/O Ports
  • USB: USB2.0 x1
• Button Functions
  • Up: Move upward
  • Down: Move downward
  • Enter: Confirm function
  • Back: Return to the previous
• DC Characteristics
  • Power supply: DC 5V
  • White LED voltage: DC 9V (IF=180mA)
  • Luminance: 600 cd/cm² (IF=180mA)
• Environment
  • Working Temperature: -20°C~70°C
  • Storage Temperature: -30°C~80°C
• Physical Characteristics
  • Machine size (mm): 188x135x25mm
  • Gross weight: 1074.2g
  • Package size (Mailbox): 280x200x70mm
