E-Paper display

color1600 x 120010"

Overview

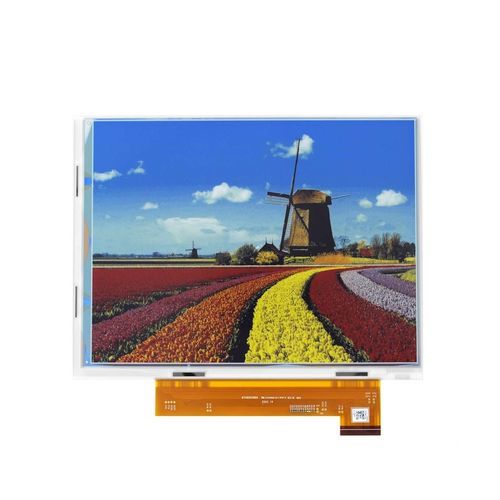

10-inch E Ink display with Spectra 6 color capability and pure reflective mode. Resolution 1600x1200 at 200 PPI, active area 203.2(H)×152.4(V) mm and outline size 219.1(H)×166.7(V)×0.78(D) mm. Surface treatment: AG (Anti-Glare). Brand: ASK. Place of origin: Guangdong, China.

Key specifications

• Type: EINK
• Color: 6 color (E Ink Spectra 6)
• Resolution: 1600 x 1200
• PPI: 200
• Size: 10 inch
• Pixel Pitch (mm): 0.127(H)×0.127(V)
• Active Size (mm): 203.2(H)×152.4(V)
• Outline Size (mm): 219.1(H)×166.7(V)×0.78(D)
• Weight (g): 75 ± 0.5
• Surface Treatment: AG (Anti-Glare)

Interface & connectivity

• Interface: TTL
• Communication Interface: parallel
• Connector: 50PIN

Operating & storage conditions

• Operating Temperature: 0℃~50℃
• Storage Temperature: -25℃~60℃

Applications

• Industrial HMI and instrumentation displays
• Electronic shelf labels and signage
• Handheld devices and readers
• Low-power information panels and embedded displays

Product images & ordering

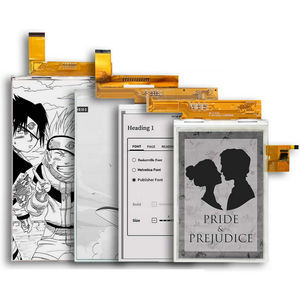

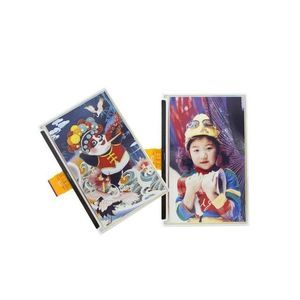

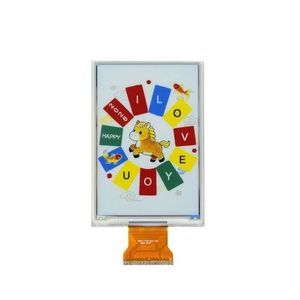

Multiple product detail images are provided on the page. For datasheet, sample requests, MOQ and customization options, contact the supplier ASK.
