E-Paper display

color800 x 480industrial

Product overview

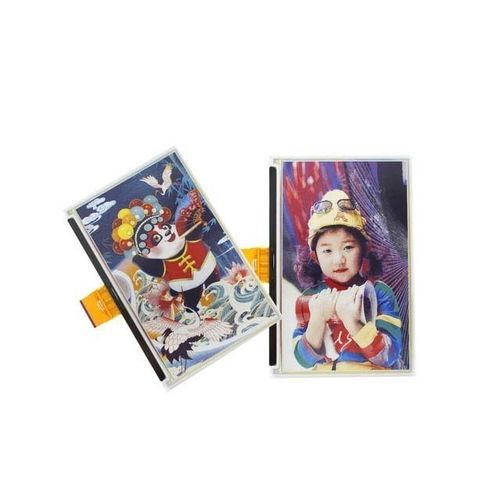

The ASK 7.3-inch color E Ink ePaper module is a low-power reflective display module designed for industrial and embedded applications. It provides 800×480 resolution with SPI interface and a 50-pin FPC connector for straightforward integration into equipment and devices.

Key specifications

• Type: EINK
• Brand Name: ASK
• Size: 7.3 inch
• Resolution: 800×480
• Active area: 160×96 mm
• Outline size: 170.2×111.2×0.91 mm
• Pixel pitch: 0.2×0.2 mm
• PPI: 127.8
• Connector: 50 Pin FPC
• Interface: SPI
• Full refresh time: 15–22 s
• Operating temperature: 0℃ to 50℃
• Storage temperature: -25℃ to 60℃
• Power consumption (refresh/standby): TBD

Electrical & interface

• Interface protocol: SPI
• Connector type: 50-pin flexible printed cable (FPC)
• Refresh and standby power: specified on request (TBD)

Environmental & mechanical

• Operating temperature range: 0℃ to 50℃
• Storage temperature range: -25℃ to 60℃
• Outline (W×H×T): 170.2×111.2×0.91 mm
• Active area (W×H): 160×96 mm
• Pixel pitch: 0.2×0.2 mm

Suggested applications

• Industrial HMI and instrumentation displays
• Electronic shelf labels and price signage
• Portable terminals and handheld devices
• Low-power information panels and signage

Ordering & customization
Standard modules are available; customization of interface, connector or mechanical outline can be discussed with sales. Contact our commercial team for lead times, samples and technical drawings.
