Ethernet extender LEP-0302G-bt-67-T

industrialIP67PoE

Introduction

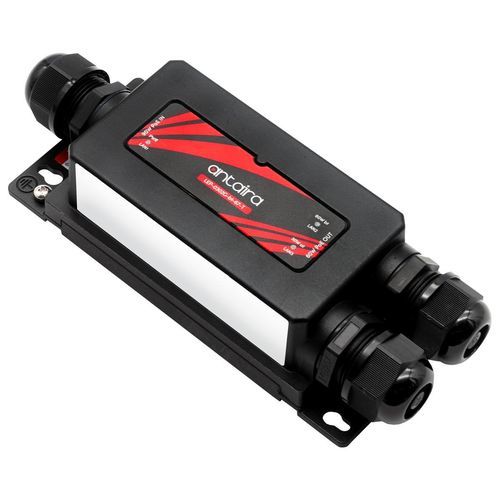

The Antaira Technologies LEP-0302G-bt-67-T is an industrial, IP67-rated Ethernet extender designed for versatile Power over Ethernet (PoE) applications. It features a 1-port IEEE 802.3bt 90W PoE input. For output, it can provide either a single 60W Gigabit IEEE 802.3bt PSE port or two IEEE 802.3af/at 30W ports. This PoE extender is capable of increasing the overall PoE distance by an additional 100 meters, for a total reach of up to 200 meters. When daisy-chained with up to four other outdoor PoE++ extenders, the total distance can be extended up to a total 500 meters at a reduced PoE budget.

Features

• Powered by bt PoE
• Support 3*10/100/1000BASE-TX Gigabit RJ45 with 2*PoE Out (2*PoE+ at 30W / 15W or 1*PoE++ at 60W)
• IEEE 802.3af/at/bt PoE++ Compliant
• Provides Up to 30 Watts on 2*PoE+ Ports Out
• Provides Up to 60 Watts on 1*PoE++ Port Out
• Extends PoE++ Distance by 100m for Up to 200m Total
• Daisy Chain Up to 4 Devices at a reduced overall PoE power budget based on distance and number of devices used
• Wall / Panel / Shelf Mountable
• Water Resistant Cable Glands
• Recommended for use with UV resistant, all-weather outdoor Ethernet cable for best performance
• Operating Temperature: -40°C to 75°C
• 5-Year Warranty

Package Content

• LEP-0302G-bt-67-T
• Quick Installation Guide
• LEP-0302G-bt-67-T
• 3 x Cable Glands
• Wall Mount Kit
• Wrench

Technical Specifications

• Technology
  IEEE Standards
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-T Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3x Flow Control and Back Pressure
  • IEEE 802.3af Power over Ethernet
  • IEEE 802.3at Power over Ethernet plus
  • IEEE 802.3bt Power over Ethernet plus plus
  Processing Type: Store and Forward
  Protocol: CSMA/CD
  Flow Control: IEEE 802.3x flow control, back pressure flow control
• Performance
  MAC Table Size: 2K
  Jumbo Frame: 9.0Kbytes
  Memory Buffer: 1Mbits
  Transfer Rate:
  • 14,880pps for Ethernet Port
  • 148,800pps for Fast Ethernet Port
  • 1,488,000pps for Gigabit Ethernet Port
  Switching Architecture: Back-Plane (Switching Fabric): 6Gbps
• Ethernet Interface
  Ethernet Port Count: 3 ports
  10/100/1000 BASE-T(X): 3 ports
  PoE Port: 2 ports (2*PoE+ at 30W / 15W or 1*PoE++ at 60W)
  PoE Pin Assignment:
  • LAN1 : V-, V-, V+, V+, V+, V+, V-, V- for pin 1, 2, 3, 4, 5, 6, 7, 8
  • LAN2 : V-, V-, V+, V+, V+, V+, V-, V- for pin 1, 2, 3, 4, 5, 6, 7, 8
  • LAN3 : V-, V-, V+, V+ for 1, 2, 3, 6
• Other Interface
  LED Indicator: PoE In, PoE Out
• Mechanical Characteristics
  Housing: Metal, IP67 protection
  Mounting: Wall / Panel / Shelf Mount
  Dimensions (W × H × D):
  • 166.5 x 73.45 x 44.3mm
  • 6.55 x 2.89 x 1.74in
  Weight:
  • Unit: 0.45kg / 1.00lb
  • Shipping: 0.50kg / 1.10lb
• Power Requirements
  Input Voltage: (Powered by bt PoE, Max 90W )
  Max. PoE Power Budget:
  • Max Total PSE
  • Power Output 60W
  Overload Current Protection: Present
• Environmental Limits
  Operating Temperature: -40° to 75° C (-40° to 167° F)
  Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
  Ambient Relative Humidity: 5% to 95% non-condensing
• Regulatory Approvals
  Certifications: FCC, CE
  EMI: CISPR 32, FCC Part 15B Class A
  EMS: IEC 61000-4-2,4,5
  Stability Testing:
  • Free Fall: IEC60068-2-32
  • Shock: IEC60068-2-27
  • Vibration: IEC60068-2-6
  Safety: LVD (EN 62368-1)
  MTBF: 522,126 hrs. at 50°C
  Green: RoHS Compliant
  Warranty: 5 years
  UL 62368-1 LVD (EN 62368-1): ✔
