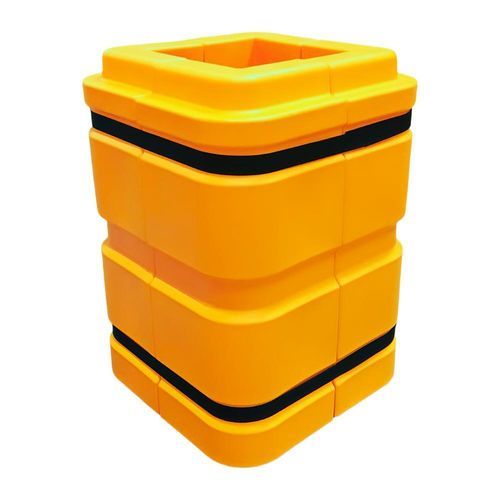

Square column protector

polymerparkingindustrial

Product overview
Column Guard SQUARE is a close-fitting polymer column protection designed for installation where space is limited. It reduces abrasion and impact damage to structural columns while maintaining access and operational clearance.

Applications

• Protection of load-bearing columns in warehouses, industrial facilities and parking garages
• Use in logistic hubs, distribution centers and production lines exposed to vehicle traffic
• Protection around forklift aisles, loading bays and high-traffic infrastructure

Technical data

• Material: polymer material
• Height: 1080 mm
• Overall width: 780 mm x 780 mm
• Designed for columns with dimensions: 420 mm x 420 mm
• Application: protection of columns and infrastructure against abrasion and impacts
• Installation: clamped directly onto the column
• Certification: tested and certified by TÜV Rheinland; annual production inspections; supervised durability tests

Installation & maintenance

• Fixing: mechanical clamp system for direct mounting without major structural modifications
• Inspection: visual inspection after impacts and scheduled checks recommended
• Cleaning: wipe with mild detergent; avoid aggressive solvents
• Service life: durability validated under TÜV Rheinland supervision; replace if deformation or damage is observed
