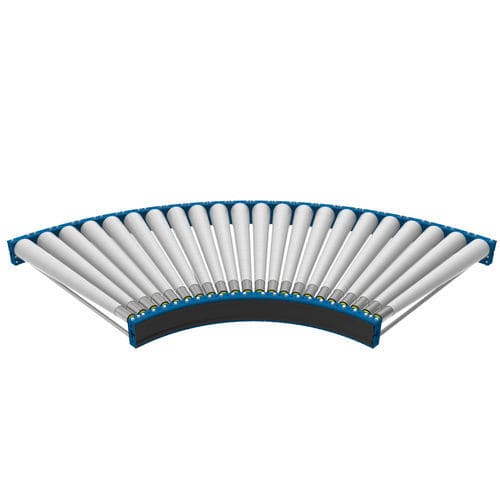

Roller conveyor

horizontalinclinedcurved

PARCEL AND POSTAL HANDLING ROLLER CONVEYOR IDDLE ROLLER CURVE Side Frame        Reinforced double formed 3 mm S235JR frame.        Standard coating RAL 5017. Other colors upon request.        Other colors upon request. Conveyor Rollers        Idle tapered rollers.        Roller lengths 450 mm, 650 mm, 850 mm, and 1000 mm available.        Other roller lengths upon request.. Conveyor Angles        30°, 45°, 60° and 90°. Maximum Load        50 kg/45°. Inner Radius        770 mm. Inner Roller Pitch        Conveyor angle - Number of rollers - Inner pitch (mm)               30° -                    06 | 07 -               56 | 68               45° -                    09 | 11 -               56 | 68               60° -                    12 | 14 -               56 | 68               90° -                    18 | 22 -               56 | 68 Inclined/Declined        Not suitable. Horizontal application only. Load Travel Direction        Both. Conveyor Side Guides        Not included. Available fixed side guides. Conveyor Supports        Are not included with conveyor, specified separately. Operating Temp.        5°C to 50°C / 41°F to 122°F. ACCESSORIES        Support, Horizontal.        Fixed Side Guide, Curve.
