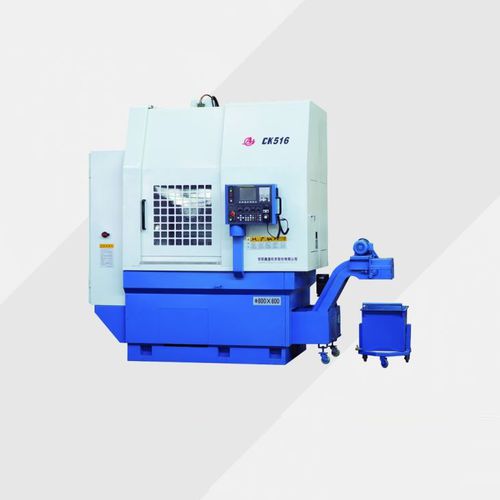

CNC lathe CK516

vertical2-axisfor brake discs

This machine base is whole piece designed by using thickwalls mixed with dense ribs structure, it has a high rigidity, strength and good shock absorption. The spindle unit design adopts the internationally mature chunky structure, supported by double row cylindrical roller bearings with bidirectional thrust angular contact ball bearings. Bearing lubricated by imported high-speed grease, when in the high-speed rotation getting very little heat, obtaining the best processing accuracy and lower operating temperature. The spindle driven by variable frequency motor through 4 gearshift gearbox and narrow V belt, which ensured the entire transmission system of high efficiency, low noise, low vibration. The guideway is linear guideway, which has the further of small friction coefficient, fast feed speed, big bearing capacity, low noise and long life. The machine equips with vertical 6-station electric turret, 8-station electric turret also can be chosen based on end users’ need, ∮530mm 3-jaw dead hole hydraulic chuck, chip conveyor, and centralized quantitative automatic lubrication system. CNC system uses FANUC CNC system made in Japan, or GSK988T system made in China, which are high efficiency, high speed, high precision machining; and have easy operation, full-featured and high reliability further. The machine is fully enclosed and with emergency stop safety button, when the machine suddenly encountered an unexpected power failure or self-failure, due to the special design of the control circuit, it can be self-protection to ensure that the machine and personnel safety.
