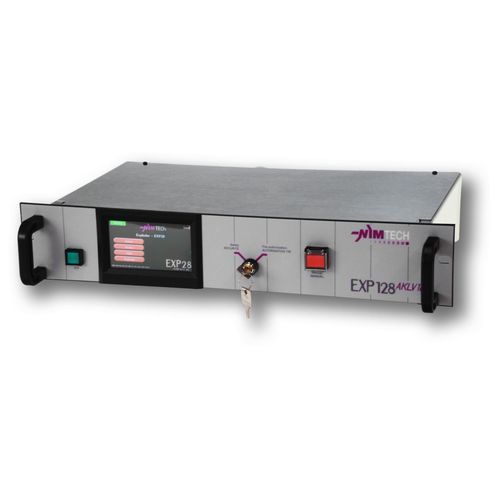

Electrical safety testing device EXP128

voltagecurrentcomputer-controlled

Overview
High Energy version, 5A/10A/25A/40A, 1 channel, up to 300 seconds (depending on the current value and the period of the slot). These exploders are intended for checks on production lines and in the laboratory, where user safety is at stake. This range of EXP128 is designed to generate constant current pulses whose value in time and amplitude is adjustable on pyrotechnic elements, making it possible to control the Energy involved. With an innovative design, they use recent technologies such as a touch screen and an Ethernet connection. They are fully digital and controllable.

Main Features

• 100µS–300S – 100mA – 5A/10A/25A/40A – 1 channel (cascadable to build 4/6… channels)
• Controllable by RS232 or Ethernet
• 19" 2U rack or tabletop cabinet versions
• Programmable current and time
• Floating firing line (insulated)
• Independent or coupled channels, 0-10V analog outputs
• Isolated current and voltage copies
• 6 independent trigger modes on each channel
• 4 individually configurable sync outputs
• Configurable functions (delayed trigger input, load break detection, etc.)

Internal equipment

• Integrated pyrotechnic safety ohmmeter
• Constant current slot generator
• Discharge circuits (ESD) of firing lines
• Safety devices: key, protected push button, external security input for door/barrier contacts
• Safety circuit isolating the firing line outside safety conditions

Typical applications

• Laboratory tests
• Bruceton tests and characterization of initiators
• AK LV-16 type tests
• Production control

Characteristics / technical specifications

• Model: EXP128
• High energy version with selectable firing current capacities: 5 A, 10 A, 25 A, 40 A
• Pulse duration: from 100 µs to 300 s (max duration depending on current value and pulse period; example: 2 A max on 2 Ω)
• Programmable current amplitude and pulse time
• Constant current pulse generation with adjustable amplitude and time
• Control interfaces: RS232 and Ethernet; touch screen available
• Form factors: 19" 2U rack or tabletop cabinet
• Floating (insulated) firing line and isolated current/voltage monitoring outputs
• Analog outputs: 0-10 V
• Multiple trigger modes: 6 independent trigger modes per channel; 4 configurable sync outputs
• Cascading capability to build multi-channel systems (4, 6... channels)
• Integrated safety features: pyrotechnic safety ohmmeter, ESD discharge circuits, key switch, protected push button, external safety input, safety circuit isolating firing line
• Configurable functions: delayed trigger input, load break detection, etc.
