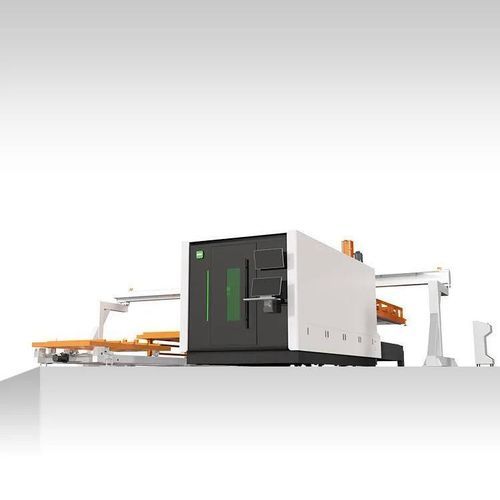

Fiber laser cutting system LGS series

for aluminumfor stainless steelfor copper

Overview
Fully automatic sheet loading and unloading system (LGS Series) designed to integrate with laser cutting lines. Automates sheet feeding and full-sheet unloading after cutting to reduce manual handling and enable continuous production.

Key Features

• Fully automated loading and unloading workflow synchronized with cutting operations to maintain continuous material flow.
• Intelligent scheduling and control system for coordination with laser cutting machines, improving throughput and equipment utilization.
• Safety-focused design with multiple sensors and interlocks to protect operators and equipment during operation.

Applications

• Power distribution cabinet manufacturing
• Construction and heavy machinery fabrication
• Kitchenware and stainless-steel products
• Hardware and metal components
• Office equipment panels and enclosures

Technical Parameters

• Model: LGS 3015 — Applicable sheet material: Carbon steel / Stainless steel; Max feeding sheet size: 3000 mm × 1500 mm; Min feeding sheet size: 1200 mm × 1000 mm; Max sheet weight: 500 kg; Exchange cart single-deck loading height: 3T.
• Model: LGS 4020 — Applicable sheet material: Carbon steel / Stainless steel; Max feeding sheet size: 4000 mm × 2000 mm; Min feeding sheet size: 1200 mm × 1000 mm; Max sheet weight: 500 kg; Exchange cart single-deck loading height: 3T.
• Automation: Full integration with laser cutting lines for continuous loading and unloading.
• Control: Intelligent scheduling to maximize throughput and equipment efficiency.
• Safety: Multiple sensors and safety interlocks to ensure operator and equipment protection.
