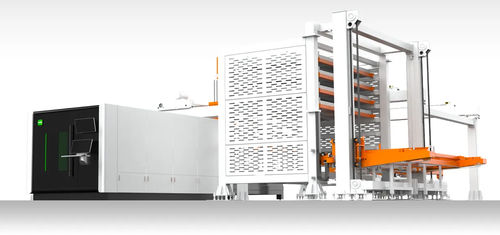

Fiber laser cutting system LGD+RW seriesfor aluminumfor stainless steelfor copper
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for aluminum, for stainless steel, for copper, for steel, for brass, for carbon steel
- Product handled
- sheet metal
- Control type
- CNC
- Associated function
- contour, multi-function, milling
- Applications
- for industrial applications, for the automotive industry, for the food industry, for processing industry, for metal fabrication, for the aerospace industry, for construction machinery, for medical applications, for the electronics industry, for shipbuilding
- Workpiece loading
- with automated loading
- Configuration
- compact
- Other characteristics
- automatic, high-speed, high-precision, high-performance, high-productivity, high-efficiency
Description
Overview
LGD+RW Series automatic sheet storage and loading system automates sheet storage, scheduling and loading to streamline production flow, reduce idle time and minimize delays.
Key Features
Applications
Technical Parameters
Model | LGD+RW3015 | LGD+RW4020 | LGD+RW6025
Applicable plate materials | Carbon steel / Stainless steel | Carbon steel / Stainless steel | Carbon steel / Stainless steel
Max. loading/unloading sheet size | 3000mm×1500mm | 4000mm×2000mm | 6000mm×2500mm
Min. loading/unloading sheet size | 1200mm×1000mm | 1200mm×1000mm | 2000mm×1000mm
Max. loading/unloading sheet weight | 1000KG / 2000KG | 1000KG / 2000KG | 1000KG / 2000KG
Number of material storage layers | 6 / 8 / 10 / 12 / 13 layers | 6 / 8 / 10 / 12 / 13 layers | 6 / 8 / 10 / 12 / 13 layers
Single-deck loading height for exchange material cart | 280mm | 280mm | 280mm
Specifications
LGD+RW Series automatic sheet storage and loading system automates sheet storage, scheduling and loading to streamline production flow, reduce idle time and minimize delays.
Key Features
- Smart scheduling & efficient flow: Materials are allocated on demand to maintain a continuous and rapid flow, reducing idle time and unnecessary delays.
- Modular structure & easy installation: Modular design with flexible layout and compact footprint to suit different production-line configurations.
- Safe & reliable operation: Multiple safety monitoring systems provide long-term stable and secure operation.
Applications
- Power distribution cabinet manufacturing
- Construction machinery
- Heavy industry
- Kitchenware production
- Hardware and office equipment manufacturing
Technical Parameters
Model | LGD+RW3015 | LGD+RW4020 | LGD+RW6025
Applicable plate materials | Carbon steel / Stainless steel | Carbon steel / Stainless steel | Carbon steel / Stainless steel
Max. loading/unloading sheet size | 3000mm×1500mm | 4000mm×2000mm | 6000mm×2500mm
Min. loading/unloading sheet size | 1200mm×1000mm | 1200mm×1000mm | 2000mm×1000mm
Max. loading/unloading sheet weight | 1000KG / 2000KG | 1000KG / 2000KG | 1000KG / 2000KG
Number of material storage layers | 6 / 8 / 10 / 12 / 13 layers | 6 / 8 / 10 / 12 / 13 layers | 6 / 8 / 10 / 12 / 13 layers
Single-deck loading height for exchange material cart | 280mm | 280mm | 280mm
Specifications
- Series: LGD+RW Series
- Models available: LGD+RW3015, LGD+RW4020, LGD+RW6025
- Applicable materials: Carbon steel, Stainless steel
- Maximum loading/unloading sheet sizes: 3000×1500 mm (3015), 4000×2000 mm (4020), 6000×2500 mm (6025)
- Minimum loading/unloading sheet sizes: 1200×1000 mm (3015 & 4020), 2000×1000 mm (6025)
- Max. sheet weight per exchange: 1000KG/2000KG
- Material storage layers: 6 / 8 / 10 / 12 / 13 layers (configurable)
- Single-deck loading height for exchange material cart: 280 mm
