Water pump unit

self-primingmobileindustrial

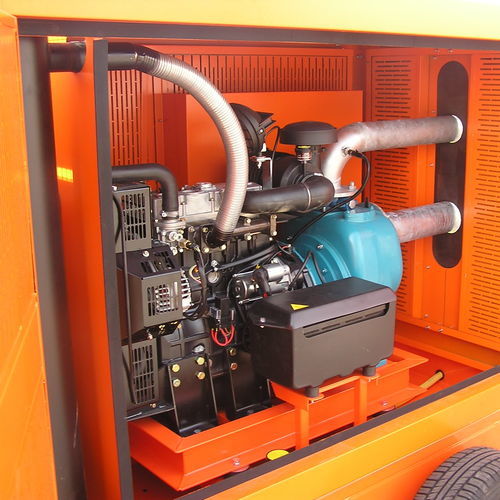

AP motor pump unit is available in a variety of engine powers and pump capacities, both high and low pressure and with or without low-noise cover. The low pressure version is used to transport water (1 à 2 bar) from the pump to the irrigation machine (with built-on water pump) at remote position in order to increase the pressure of the machine to 10 bar. A significant advantage of this low pressure system is that the pressure loss in the supply hose is zero and that the built-on water pump of the irrigation machine does not have to suck the water itself, whichs considerably increases the efficiency of the machine. Standard equipment AP motor pump unit Low-noise cover Fixed frame without wheels Rovatti or Viesse self-priming pump Fuel tank 300 liters Elcos motor protection CM 250 Without connection discharge and suction side Options Skid shoes for forks fork lift truck Drawbar, 2 wheels and supports Frame with hydraulic lifting arm for suction hose The high pressure version is used to transport water under high pressure (10 à 11 bar) from the pump to a turbine of hydro kit irrigation machine at remote position. Standard equipment Low-noise cover Frame on wheels, drawbar and support Caprari MEC 80 4-3 pump 1750 rpm / 86 m³ / 12,0 Fuel tank 600 liters Elcos motor protection CM 250 Venturi suction system Without connection discharge and suction side Options Frame with hydraulic lifting arm for suction hose
