Hose reel
self-retractingfor waterfixed

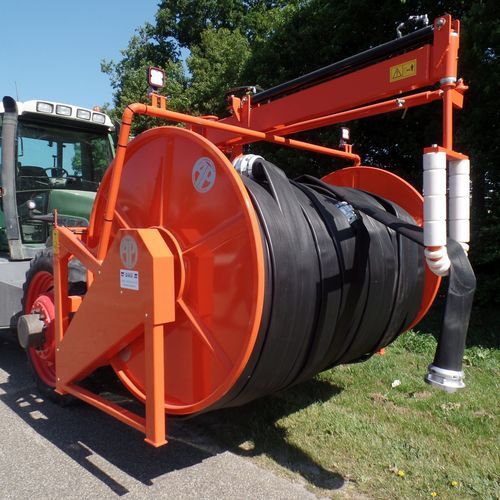

Hose reel - AP Machinebouw B.V. - self-retracting / for water / fixed
Hose reel - AP Machinebouw B.V. - self-retracting / for water / fixed
Hose reel - AP Machinebouw B.V. - self-retracting / for water / fixed - image - 2
Hose reel - AP Machinebouw B.V. - self-retracting / for water / fixed - image - 3
Hose reel - AP Machinebouw B.V. - self-retracting / for water / fixed - image - 4
Hose reel - AP Machinebouw B.V. - self-retracting / for water / fixed - image - 5
Hose reel - AP Machinebouw B.V. - self-retracting / for water / fixed - image - 6
Add to favorites
Compare this product

Characteristics

Type
hose
Drive mechanism
self-retracting
Applications
for water
Configuration
fixed
Hose/cable length

400 m, 700 m, 1,000 m
(1312'04" , 2296'07" , 3280'10" )

Description

The AP hose reel is developed for the winding or unwinding of lay-flat hoses for irrigation or drag hose fertilization. The reel is double sided hydraulically driven and provided with a three-point connection. Possibly required front or rear lighting can easily be installed. The hydraulically controlled hose guide enables a simple winding of the hose over the entire width of the reel and discards the hose to a side during unwinding. The core of the drum is supplied on both sides with a pilot hole (⌀230 mm, depth 200 mm) in which the flange coupling can be put. Versions of AP Hose Reel Front attached Front attached including hydraulically controlled arm Rear attached Rear attached including hydraulically controlled arm Standard equipment AP Hose Reel Robust frame Double sided driven by hydraulic motors Three-point connection CAT II + III Without hose Heavy chain drive 2 Hydromotors, built in the frame Motor OMS 2000 Width drum 210 cm 2 Pilot holes (⌀230 mm, depth 200 mm) Options Front or rear lighting Additional drum sizes RAL color at choice
