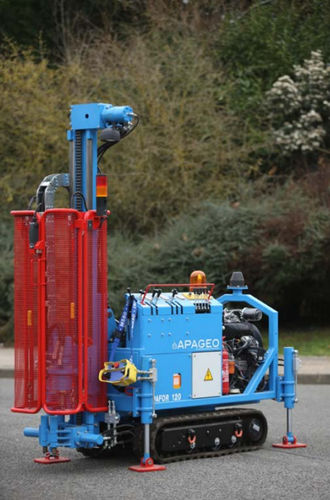

Core drilling drilling rig APAFOR® 120

geotechnicalpilingcrawler

SKID AND EQUIPMENT Mechanically welded steel frame mounted on a fix width a 75 cm rubber track Wireless remote moving control Rotation head with integrated injection swivel Proportional hydraulic controls 4 hydraulic jacks Hydraulic rod clamp 4 tons force Light for night works Towing coupler Waterproof cigar lighter receptacle and fire extinguisher PERFORMANCES 20 HP LOMBARDINI diesel engine Maximum torque : 140 daNm Rotation speed : From 0 to 80 rpm Useful stroke : 1.32 m Pull-up force : 1 000 daN MOTORIZATION 20 HP LOMBARDINI diesel engine APPLICATIONS Auger drilling and rotary-injection drilling Forage au marteau fond-de–trou Down-the-hole hammer drilling APAFOR® 120 THE + Very attractive power-weight ratio Very compact rig ideal for restricted areas and easily transportable TRACK MOUNTED FOR DIFFICULT SITES ACCESS Very attractive power-weight ratio Very compact rig ideal for restricted areas and easily transportable Drilling for pressuremeter tests and micro-piling at lowest cost
