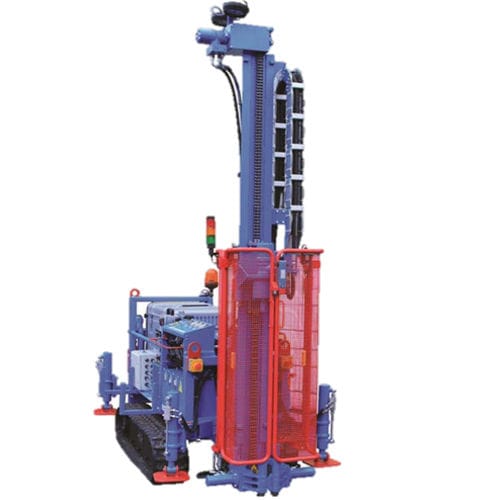

Core drilling drilling rig APAFOR® 330 AND 340

geotechnicalsoil investigationpiling

SKID AND EQUIPMENT Mechanically welded steel framemounted on a variable width rubber track operated from 70to 100 cm or mounted on roadtrailer 4 mechanical feet or hydraulic jacks for stabilization Proportional hydraulic controls Wireless remote moving control MOTORIZATION 32HP HATZ soundproofed diesel engine (APAFOR® 330) or 41 HP DEUTZ ( APAFOR® 340 and 340 on Trailer) PERFORMANCES Rotation speed 0 to 70 rpm In option 0 to 480 rpm (330), 0 to 505 rpm (340) Maximum torque 220 DaN.m Pull up force 1700 DaN Moving speed 0 to 4.6 km/h OTHER PERFORMANCES AVAILABLE ON REQUEST APPLICATIONS Drilling for Pressuremeter tests and soil investigation Drilling with auger, rotary bit and Down The Hole Hammer Micro piling Conventional coring Penetration test DPSH / SPT DATA ACQUISITION (IN OPTION) ExploFOR® ApaDYN® APAFOR® 330 AND 340 THE + Very compact for difficult site access Excellent attractive power / weight ratio Very attractive power-weight ratio Very compact rig easily transportable Drilling for pressuremeter tests and micro piling at lowest cost Down-the-hole hammer drilling Additional fast rotation head for coring
