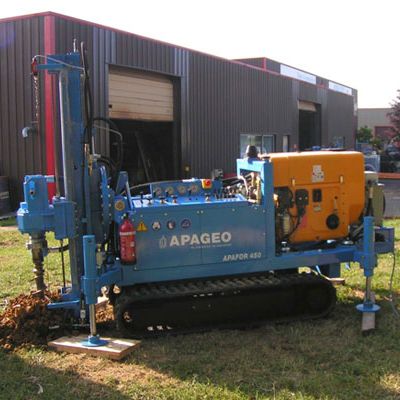

Core drilling drilling rig APAFOR® 450MP

micropilecrawlerrotary

SKID AND EQUIPEMENT Mechanically welded steel frame mounted on a rubber track 1,10 m width Prefitting the drilling data logger Proportionnal hydraulic controls 4 hydraulic jacks for stabilization Hydraulic rod clamp Swift injection swivel at the top of the rotation head MOTORIZATION 48 HP HATZ soundproofed diesel engine PERFORMANCES Adjustable torque: 0 to 306 daNm Variable rotation speed up to 206 rpm Pull-up force: 0 to 4000 daN APPLICATIONS Continuous flight auger, rotary and Down-the-Hole hammer drilling Special rotation head for micro-piling, strong and robust for preboring at lower cost APAFOR® 450MP THE + Ideal for micro-piling and under pinning Very attractive power weight ratio Vertical and inclined drilling and left / right inclinaison ± 15° General information ■Mechanically welded steel frame mounted on a rubber track 1.10 m width ■Safety devices ■Prefitting the drilling data logger Technical specifications - standard ■48 HP Hatz soundproofed die sel engine ■Flange with pin thread (other threads available on request) ■Adjustable torque: 0 to 3DB daNm ■Variable rotation speed from D to 20G rpm ■Pull-up force: 0 to 4 ODD daN ■Proportional hydraulic controls ■4 hydraulic jacks for stabilisation ■Mast length: 3.B5 m (other length available) ■Hydraulic rod clamp ■Weight: 2 300 kg without options ■Swift injection swivel at the top of the rotation head ■Dimensions: L 3.1 x W 1.4 x H 2.1 m (drilling position)
