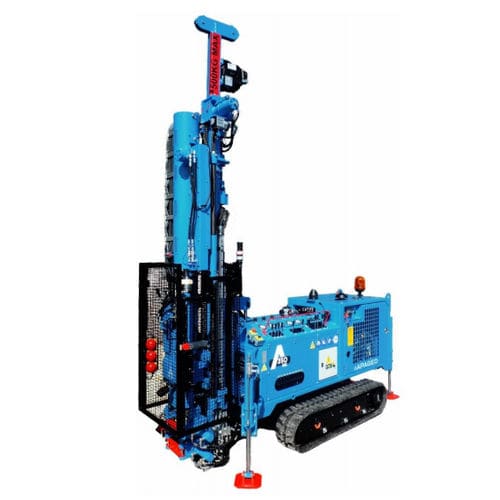

Core drilling drilling rig APAFOR® 350

geotechnicalcrawlerautonomous

SKID AND EQUIPMENT Rigid mechanically welded steel frame with variable hydraulic width (780 to 1180mm), and safety cage (800 mm wide) 4 hydraulic adjustable stabilization jacks Rods rack and towing hook Radio remote control for moving MOTORIZATION Diesel engine Yanmar 36 HP (new standards STAGE V, 2019) PERFORMANCES Motor 315 : Rotation speed 0 to 302 rpm, Maximum torque 200 DaN.m Motor 200 : Rotation speed 0 to 476 rpm, Maximum torque 114 DaN.m Pull-up force : 0 to 2 000 DaN.m Rotary percussion drilling head with proportional hydraulic control Hydraulic hammer : 120 joules - 1 600 bpm APPLICATIONS Drilling with auger, rotary bit and Down The Hole Hammer Rotary-percussion drilling thanks to the hydraulic hammer Conventional coring Penetration test DPSH / SPT (in option) DATA ACQUISITION (IN OPTION) ExploFOR® ApaDYN® APAFOR® 350 THE + Compact drilling rig, versatile and autonomous, perfect for works in confined areas and the most difficult site access Many options possible The option Heavy dynamic penetrometer for DPSH, SPT and control compaction (penetrodensitograph) is settled very easily to the rotary head trolley which keeps his hydraulic head sliding: a unique conception in the market! The whole stays inside the safety cage and the penetrometer is used with the cage opened: a strong advantage for all penetration tests and hammering works Designed on a rigid steel frame and powered with a Yanmar 36 HP engine in accordance with the new 2019 standards, providing all adequate integrated equipment, with UFCMF label, it’s the perfect versatile and very compact rig for all your geotechnical works.
