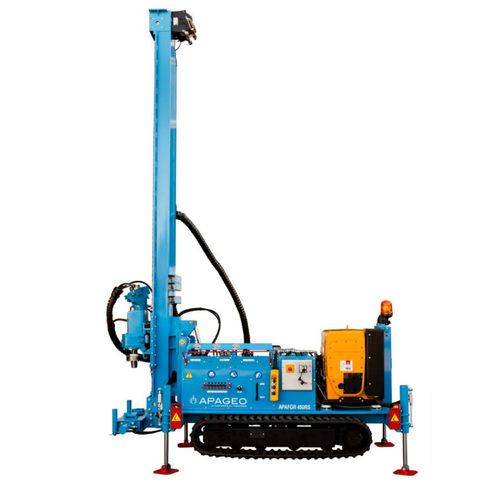

Core drilling drilling rig APAFOR® 450RS

micropilecrawlerrotary

SKID AND EQUIPMENT Mechanically welded steel frame mounted on a fixed rubber track (width 140 cm) 4 hydraulic stabilization feet Remote moving control Injection pump (several options, please consult us) MOTORIZATION HATZ diesel engine 48HP soun-dproofed or DEUTZ engine 62 HP PERFORMANCES Rotation speed 0 to 495 rpm (HATZ motor) -0 to 470 rpm (DEUTZ motor) Torque 280 DaN.m Pull-up force 1900 daN Moving speed from 0 to 4.6 Km/h OTHER PERFORMANCES AVAILABLE ON REQUEST APPLICATIONS Conventional and wireline coring Drilling with auger, rotary bits and Down The Hole Hammer Micropiling Penetration test DPSH / SPT (in option) DATA ACQUISITIO (IN OPTION) ExploFOR® ApaDYN® APAFOR® 450RS THE + Simple and robust versatile rig Very attractive power weight ratio Lowered center of gravity for better stability in rough sites Robust versatile rig, track mounted for difficult site access. Very attractive power-weight ratio and easy-to-use Continuous flight auger, rotary down-the-hole hammer drilling, conventional and wireline coring Fully self-sufficient thanks to its numerous option
