Oil cooler DF DC/MF DC
custommobilewith DC motor

Oil cooler - DF DC/MF DC - API Schmidt-Bretten, API Heat Transfer group - custom / mobile / with DC motor
Oil cooler - DF DC/MF DC - API Schmidt-Bretten, API Heat Transfer group - custom / mobile / with DC motor
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Material
oil
Other characteristics
mobile, custom, with DC motor
Power

Max.: 35,000 BTU/h

Min.: 0 BTU/h

Maximum temperature

350 °C
(662 °F)

Flow rate

Max.: 110 us gal/min
(416.395 l/min)

Min.: 0 us gal/min
(0 l/min)

Pressure

30 psi, 60 psi, 300 psi, 2,000 psi

Description

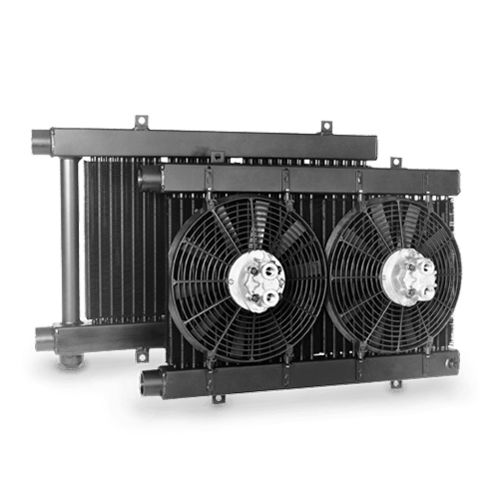

Thermal Transfer Products Copper Tube and Fin Mobile Hydraulic Oil Coolers API Heat Transfer’s full line of Thermal Transfer Products standard mobile oil coolers is proven to stand-up in some of the toughest off-road environments. Our oil coolers are available with a wide variety of standard options to best suit each application and offer maximum performance. Copper Tube and Fin Product Highlights Aluminum or Steel fins available Up to +100 HP of heat removal from hydraulic oil Cost effective, industry proven designs Large range of standard sizes Standard Product Options 12 or 24 volt DC fans Hydraulic fan motor drive Built-in pressure bypass (30 or 60 psi for cold start-up) Heresite coating for offshore or corrosive environment operation Customer Focused and Driven All catalog product is available with short lead-times Expert application engineers available to select and size the right product for your application Custom designs are available Industry Applications Our oil coolers are used in a wide variety of mobile applications across the globe. Commercial duty lawnmowers Municipal street cleaners Hydrostatic drives Tow-behind compressor lube cooling Construction equipment Underground mining Engine oil cooling
